Caliper and Brake Lines

Brake Connecting Line Rear Caliper, RIGHT.




Porsche 911 Carrera 1987-89

Porsche 930 Turbo 3.0L 1975-77
Porsche 930 Turbo 3.3L 1978-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 10

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91135565306

The product you are viewing cross references to these numbers

Brake hose / line connection piece.



Fits:
Porsche 356 B/C 1950-65
Porsche 911 1965-89
Porsche 912 1965-70
Porsche 914 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 11

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435566100

The product you are viewing cross references to these numbers

Brake Hose / Line Connection Piece

The brake line connector is used within the hydraulic brake line system, providing the intermediate connection required between the appropriate brake hose and brake line components.

Fits:

• Porsche 911 1965-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)
• Porsche 356A 1955-59
• Porsche 356B 1959-63
• Porsche 356C 1963-65
• Porsche 914 (1970-1976)

Diagram ref no 11

Although small, this connection piece forms an important part of the hydraulic braking system. A secure, correctly sealed connection helps maintain brake fluid pressure between the rigid brake pipe and associated hydraulic components.

What Does the Brake Hose / Line Connection Piece Do?

The connection piece provides a secure joining point within the vehicle's hydraulic brake circuit.

When the brake pedal is pressed, hydraulic pressure generated by the master cylinder must travel through the brake pipes and flexible hoses to the brake calipers or wheel cylinders. Every connection within this system must remain securely sealed to prevent loss of brake fluid and hydraulic pressure.

Why Is It Important?

The braking system relies on a closed hydraulic circuit. Even a relatively small leak at a brake line connection can result in fluid loss and reduced braking effectiveness.

A correctly fitted connection piece helps:

• Provide a secure brake hose/line connection
• Maintain the integrity of the hydraulic brake circuit
• Prevent brake fluid leakage at the joint
• Maintain correct factory brake line routing
• Provide the correct connection when replacing brake pipes or hoses
• Restore the original brake system during a classic Porsche restoration

Because it forms part of a safety-critical hydraulic system, the fitting and surrounding brake lines should always be inspected carefully during brake servicing.

Why Does It Fail?

Metal brake fittings can deteriorate after decades of service, particularly on classic Porsche models exposed to moisture, road dirt and road salt.

Common problems include:

• External corrosion
• Damaged or rounded threads
• Seized brake pipe fittings
• Damage during removal of old brake hoses or pipes
• Distorted sealing surfaces
• Previous overtightening
• Cross-threading
• Contamination around the connection
• General deterioration associated with age

Older fittings can also become extremely difficult to separate from the brake pipe after many years in position. Attempting to force a seized connection may damage the fitting or adjoining brake line.

When Should It Be Replaced?

Replacement should be considered if the connection piece is corroded, damaged, seized or no longer provides a reliable hydraulic connection.

It is also sensible to inspect and, where necessary, replace the fitting when installing:

• New brake hoses
• Replacement rigid brake pipes
• New brake calipers
• Refurbished brake calipers
• A replacement master cylinder
• A completely restored braking system

Any evidence of brake fluid leakage around the connection requires immediate investigation.

Checks and Diagnosis

Before replacing the connection piece, inspect the surrounding braking system carefully.

Check the rigid brake pipe for corrosion or damage and inspect the flexible hose for cracking, swelling, abrasion or deterioration. Check the threads and sealing surfaces of all mating components and look for signs of brake fluid leakage.

If the brake pedal feels unusually soft or requires excessive travel, the complete hydraulic system should be checked rather than assuming the connection piece itself is responsible.

After opening the hydraulic circuit, the brake system must be correctly bled and checked for leaks before the vehicle is returned to use.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435566100

The product you are viewing cross references to these numbers

Bracket For Front Or Rear Brake Hose/Line. EACH.
The OE Match Bracket for Front or Rear Brake Hose/Line is a premium-quality replacement mounting bracket designed to securely retain the flexible brake hose and rigid brake line on compatible Porsche models. Manufactured to OE specifications for fit, strength and durability, this bracket ensures the brake hose and line remain correctly positioned, preventing unnecessary movement, abrasion and strain throughout the suspension's range of travel.

Fits:

• Porsche 911 1965-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)

Diagram Ref No 26

Manufactured from high-quality pressed steel with a durable corrosion-resistant finish, the bracket is engineered to withstand constant vibration, road debris, moisture and temperature fluctuations. Precision-manufactured for direct OE-style installation, it provides secure support for the hydraulic brake lines, helping to preserve braking performance and system reliability. Supplied individually (each), it is suitable for front or rear applications where specified.

What This Product Does:

• Securely mounts the brake hose and brake line.
• Maintains the correct routing of hydraulic brake components.
• Prevents excessive movement during suspension and steering operation.
• Reduces stress on flexible brake hoses.
• Helps prevent chafing and abrasion of brake lines.
• Supports reliable hydraulic brake performance.
• Restores factory-style mounting and alignment.
• Forms an essential part of the vehicle's braking system.

Symptoms Of Wear Or Failure:

• Loose or unsupported brake hoses.
• Excessive movement of brake lines.
• Corroded or damaged mounting bracket.
• Brake hose rubbing against suspension or chassis components.
• Bent or distorted bracket.
• Missing retaining bracket or fixing hardware.
• Premature wear of flexible brake hoses.
• Rattling noises from unsecured brake lines.
• Visible corrosion around the mounting area.
• MOT or vehicle inspection failure due to insecure brake line mounting.

Why Replacement Matters:

• Brake hose and line brackets are continually exposed to moisture, vibration, road salt and debris. Over time, corrosion, impact damage or fatigue can weaken the bracket, allowing the brake hose or line to move excessively or become incorrectly positioned.
• A damaged or missing bracket can place additional strain on the brake hose, increasing the risk of abrasion, premature wear or hydraulic failure. Poorly supported brake lines may also contact moving suspension or steering components, potentially leading to costly repairs and compromising braking safety.
• Replacing a worn or damaged brake hose/line bracket restores the correct routing and secure mounting of the braking system. The OE Match replacement provides factory-style fitment, high-strength corrosion-resistant construction and long-lasting durability, helping maintain the safety, reliability and braking performance expected from your Porsche.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

113611715A

The product you are viewing cross references to these numbers

Brake line angle piece.



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 924 GT 1980-85
Porsche 924S 1986-88
Porsche 944 1982-85
Porsche 914-6/4/1,7 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 23

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135561501

The product you are viewing cross references to these numbers

Brake line angle piece.

Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 924 GT 1980-85
Porsche 924S 1986-88
Porsche 944 1982-85
Porsche 914-6/4/1,7 1970-76

Diagram ref no 23

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135561501

The product you are viewing cross references to these numbers

Brake Line 3-way distribution piece..



Fits:
Porsche 356 1950-65
Porsche 911 1965-89
Porsche 924S 1986-88
Porsche 928 1978-95
Porsche 944 1982-91
Porsche 964 1989-94
Porsche 968 1992-95

Click 'Zoom in' for large parts diagram.
Diagram ref no 5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435566701

The product you are viewing cross references to these numbers

Brake Line 3-way distribution piece.

Fits:
Porsche 356 1950-65
Porsche 911 1965-89
Porsche 924S 1986-88
Porsche 928 1978-95
Porsche 944 1982-91
Porsche 964 1989-94
Porsche 968 1992-95

Diagram ref no 5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435566701

The product you are viewing cross references to these numbers

Brake line Front.
Flexi hose to union.

Fits:
Porsche 911 1987 - 1989

Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91135561704

The product you are viewing cross references to these numbers

Brake line front left, Cylinder to connector piece for RHD cars



Fits:
Porsche 911 1978-89 RHD Cars

Click 'Zoom in' for large parts diagram.
Diagram ref no 8

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91135506500

The product you are viewing cross references to these numbers

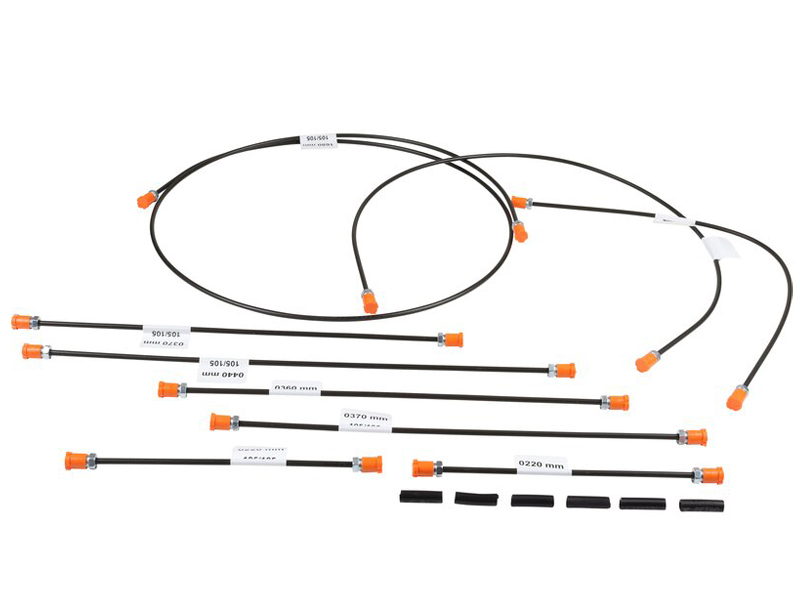

Brake Line Kit, 1 Circuit Brake System (Not For Models With Brake Booster).

The OE Match Brake Line Kit is a complete replacement hard brake pipe set for early Porsche 911 models with a single-circuit braking system and without a brake booster.
Set Of 9.

NOTE: Needs To Be Moulded Into Shape!

Fits:

The kit contains 9 brake lines required to renew the vehicle's rigid hydraulic brake pipework. These lines carry pressurised brake fluid from the master cylinder through the braking circuit to the wheel brakes.

Designed for left-hand-drive Porsche 911 models from 01/1963 to 07/1967, the pipes are supplied ready to be carefully formed and routed to match the original installation.

This kit is particularly suitable for restoration projects or for replacing original brake pipes that have become corroded, damaged or unsafe through age.

What This Product Does:
Brake lines are an essential part of the vehicle's hydraulic braking system.

When the brake pedal is pressed, the master cylinder generates hydraulic pressure in the brake fluid. The rigid brake lines carry this pressure through the vehicle to the braking components at each wheel.

The brake line system therefore helps:

• Transfer hydraulic pressure from the master cylinder to the brakes
• Provide consistent braking response
• Maintain a sealed hydraulic circuit
• Prevent loss of brake fluid
• Support reliable operation of the braking system
• Maintain the correct routing of brake fluid around the vehicle

Because this application uses a single-circuit braking system, maintaining the integrity of every brake pipe is especially important.

Symptoms Of Wear Or Failure:
Brake pipes are exposed to moisture, road contamination, vibration and corrosion throughout the life of the vehicle.

Common signs that brake lines may require replacement include:

• Visible rust or corrosion on the pipes
• Heavy pitting of the metal surface
• Flaking or weakened pipework
• Dampness or brake fluid around a pipe
• Brake fluid leaking from unions or damaged sections
• Falling brake fluid level
• Soft or spongy brake pedal
• Pedal travelling further than normal
• Reduced braking performance
• Brake warning symptoms associated with fluid loss
• Damaged, crushed or incorrectly bent brake lines
• Corroded pipe unions that can no longer be serviced reliably
• Brake pipes identified as unsafe during inspection or restoration

Any evidence of leaking or severely corroded brake pipework should be treated as a safety-critical issue.

Why Replacement Matters:

• Brake lines must withstand considerable hydraulic pressure every time the brakes are applied.
• Corrosion gradually reduces the wall thickness of a steel brake pipe. If deterioration becomes severe, the pipe can begin to leak or may rupture when the braking system is pressurised.
• A brake fluid leak reduces hydraulic pressure and can cause a substantial loss of braking performance. This is particularly significant on a single-circuit system, where a major hydraulic failure can affect the braking system much more extensively than on later dual-circuit arrangements.
• Replacing ageing brake pipes before they fail helps restore the integrity of the hydraulic circuit and ensures braking pressure can be transmitted safely to the wheel brakes.
• A complete line kit is also useful during a full restoration, allowing multiple decades-old pipes to be renewed together rather than retaining potentially weakened original sections.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

1661500310

The product you are viewing cross references to these numbers

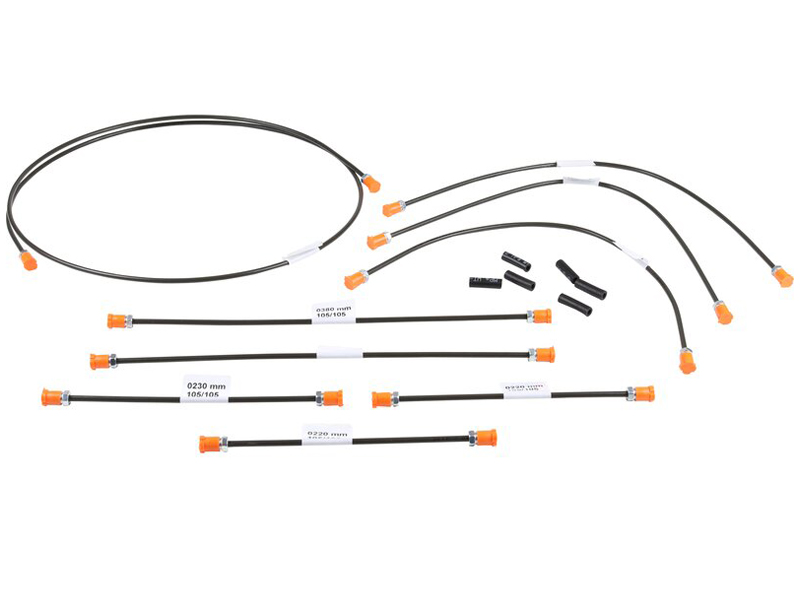

Brake line kit. 1 circuit brake system. SET OF 10.



Fits:
Porsche 911 2.0 01/1963-07/1968 RHD Cars

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

1661500810

The product you are viewing cross references to these numbers

Brake Line Kit, 1 Circuit Brake System (Not For Models With Brake Booster).

The OE Match Brake Line Kit is a complete replacement hard brake pipe set designed for early Porsche models equipped with a single-circuit braking system and without a brake booster.
Set Of 9.

NOTE: Needs To Be Moulded Into Shape!

Fits:

• Porsche 911 1967-1968 2.0L / 912 SWB (F) (LHD Cars)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F) (LHD Cars)

The kit contains 9 brake lines used to renew the rigid hydraulic pipework that carries brake fluid from the master cylinder to the braking components around the vehicle.

Designed for early left-hand-drive applications, the pipes are supplied ready to be carefully formed and routed to match the original installation. This makes the kit particularly suitable for restoration work or replacement of original brake lines that have become corroded, damaged or unsafe through age.

What This Product Does:
The brake lines form a vital part of the vehicle's hydraulic braking system.

When the brake pedal is pressed, the master cylinder creates hydraulic pressure in the brake fluid. The rigid brake pipes transfer this pressure through the vehicle to the brakes at each wheel.

Their main functions include:

• Carrying pressurised brake fluid through the braking system
• Transferring hydraulic force from the master cylinder to the wheel brakes
• Maintaining a sealed hydraulic circuit
• Supporting consistent and predictable braking
• Preventing brake fluid loss
• Maintaining the correct factory routing of the braking system
• Providing reliable hydraulic connections between braking components

Because this vehicle uses a single-circuit brake system, maintaining the integrity of the complete hydraulic circuit is particularly important.

Symptoms Of Wear Or Failure:
Steel brake pipes are exposed to moisture, road dirt, salt, vibration and repeated temperature changes. Over time, they can corrode or become mechanically damaged.

Common signs that brake pipes may require replacement include:

• Visible surface rust or corrosion
• Heavy pitting of the metal pipework
• Flaking or weakened sections of pipe
• Brake fluid leaking from a pipe or union
• Damp or oily-looking areas around brake connections
• Falling brake fluid level
• Soft or spongy brake pedal
• Increased brake pedal travel
• Reduced braking performance
• Brake pedal gradually sinking under pressure
• Damaged, kinked or crushed brake pipes
• Corroded fittings that can no longer be serviced safely
• Brake pipes flagged as unsafe during inspection
• Deterioration discovered during restoration work

Any leaking or heavily corroded brake line should be treated as a safety-critical fault.

Why Replacement Matters:

• Brake lines must withstand substantial hydraulic pressure every time the brakes are applied.
• Corrosion gradually reduces the wall thickness of the metal pipe. If deterioration progresses far enough, the line may begin to leak or can rupture when the brakes are applied.
• A loss of brake fluid reduces hydraulic pressure and can cause a serious reduction in braking performance. This is particularly significant on a single-circuit system, because one major hydraulic failure can affect the braking system much more extensively than on later dual-circuit designs.
• Replacing deteriorated brake lines before they fail helps restore the integrity of the braking circuit and ensures hydraulic pressure can be transmitted safely to the brakes.
• Renewing the complete set during a restoration is also beneficial because it avoids retaining other ageing sections of original brake pipe that may be approaching the same level of deterioration.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

1661500410

The product you are viewing cross references to these numbers

Brake line kit. 1 circuit brake system (not for models with brake booster). SET OF 10.
Needs to be moulded into shape



Fits:
Porsche 911 2.0-2.2 08/68-07/71 LHD Cars

Covers OE Porsche numbers: 90135561102, 90135561200, 90135561900, 90135562001, 90135562102, 90135562202, 90135562701, 91135565305, 91435560300, 91435569100.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

1661500510

The product you are viewing cross references to these numbers

Brake line kit. 1 circuit brake system. MUST be hand formed. SET OF 9.



Fits:
Porsche 911 2.0-2.7 08/68-07/75 RHD Cars

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

1661500710

The product you are viewing cross references to these numbers

Brake Line Kit, 2 Circuit Brake System (Not For Models With Brake Booster).
The OE Match Brake Line Kit is a complete replacement hard brake pipe set for classic Porsche 911 models equipped with a dual-circuit braking system and without a brake booster.
Set Of 10.

NOTE: Needs To Be Moulded Into Shape!

Fits:

The kit contains 10 rigid brake lines used to renew the hydraulic pipework that carries pressurised brake fluid between the master cylinder and the braking components around the vehicle.

Designed for left-hand-drive Porsche 911 models from 08/1971 to 07/1973, the lines are supplied ready to be carefully shaped and routed to match the original installation.

This kit is particularly suitable for restoration work, major brake-system refurbishment, or replacement of original steel brake pipes that have become corroded, damaged or unsafe through age.

What This Product Does:
The brake lines form a critical part of the vehicle's hydraulic braking system.

When the brake pedal is pressed, the master cylinder generates hydraulic pressure. The rigid brake pipes carry this pressurised fluid through the vehicle to the wheel brakes, allowing braking force to be applied.

Their main functions include:

• Carrying pressurised brake fluid through the vehicle
• Transferring hydraulic pressure from the master cylinder to the wheel brakes
• Maintaining a sealed braking circuit
• Supporting consistent brake pedal response
• Preventing brake fluid loss
• Maintaining correct hydraulic connections between braking components
• Helping preserve the original brake-line routing
• Supporting reliable operation of the dual-circuit braking system

A dual-circuit brake system divides the hydraulic system into separate circuits, providing an additional level of redundancy compared with an earlier single-circuit arrangement.

Symptoms Of Wear Or Failure:
Rigid brake lines are exposed to moisture, road salt, dirt, vibration and repeated temperature changes. Over many years, steel pipes can corrode or become physically damaged.

Common signs that brake lines may require replacement include:

• Visible rust or corrosion
• Heavy surface pitting
• Flaking or severely deteriorated pipe surfaces
• Brake fluid leaking from a pipe
• Wetness around brake-line unions
• Falling brake fluid reservoir level
• Soft or spongy brake pedal
• Increased brake pedal travel
• Brake pedal slowly sinking under pressure
• Reduced braking performance
• Brake warning indications
• Damaged or rounded pipe fittings
• Bent, crushed or kinked brake lines
• Pipes rubbing against surrounding components
• Severe corrosion around retaining clips
• Poor-quality previous brake-line repairs
• Pipes identified as unsafe during inspection or restoration

Any leaking or heavily corroded brake pipe should be treated as a safety-critical fault.

Why Replacement Matters:
Brake lines must contain substantial hydraulic pressure every time the brakes are applied.

Corrosion gradually reduces the wall thickness of a steel brake pipe. If deterioration progresses far enough, the line can begin to leak or may rupture under braking pressure.

Loss of brake fluid reduces hydraulic pressure and can seriously compromise braking performance. Although a dual-circuit system provides more redundancy than a single-circuit design, failure of one circuit still causes a significant reduction in braking capability and requires immediate repair.

Replacing ageing or corroded brake lines helps restore:

• A sealed hydraulic braking system
• Reliable transmission of brake pressure
• Consistent pedal feel
• Correct operation of both brake circuits
• Reduced risk of brake-fluid loss
• Safer and more predictable braking

For restoration projects, replacing the complete pipe set is often preferable to renewing only one visibly damaged section, as other original lines may be of similar age and condition.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

1661500610

The product you are viewing cross references to these numbers
