Cylinder Head / Camshaft Carrier

Camshaft adjuster magnet.

Fits:
Porsche 95B.1 Macan 2.0L 2014-18
Porsche 95B.2 Macan 2.0L 2019-21
Porsche 9YA Cayenne 2.0L 2018>>

Click 'Zoom in' for large parts diagram.
Diagram ref no 17

Camshaft adjuster magnet.

Fits:
Porsche 95B.1 Macan 2.0L 2014-18
Porsche 95B.2 Macan 2.0L 2019-21
Porsche 9YA Cayenne 2.0L 2018>>

Click 'Zoom in' for large parts diagram.
Diagram ref no 17

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95810925911

The product you are viewing cross references to these numbers

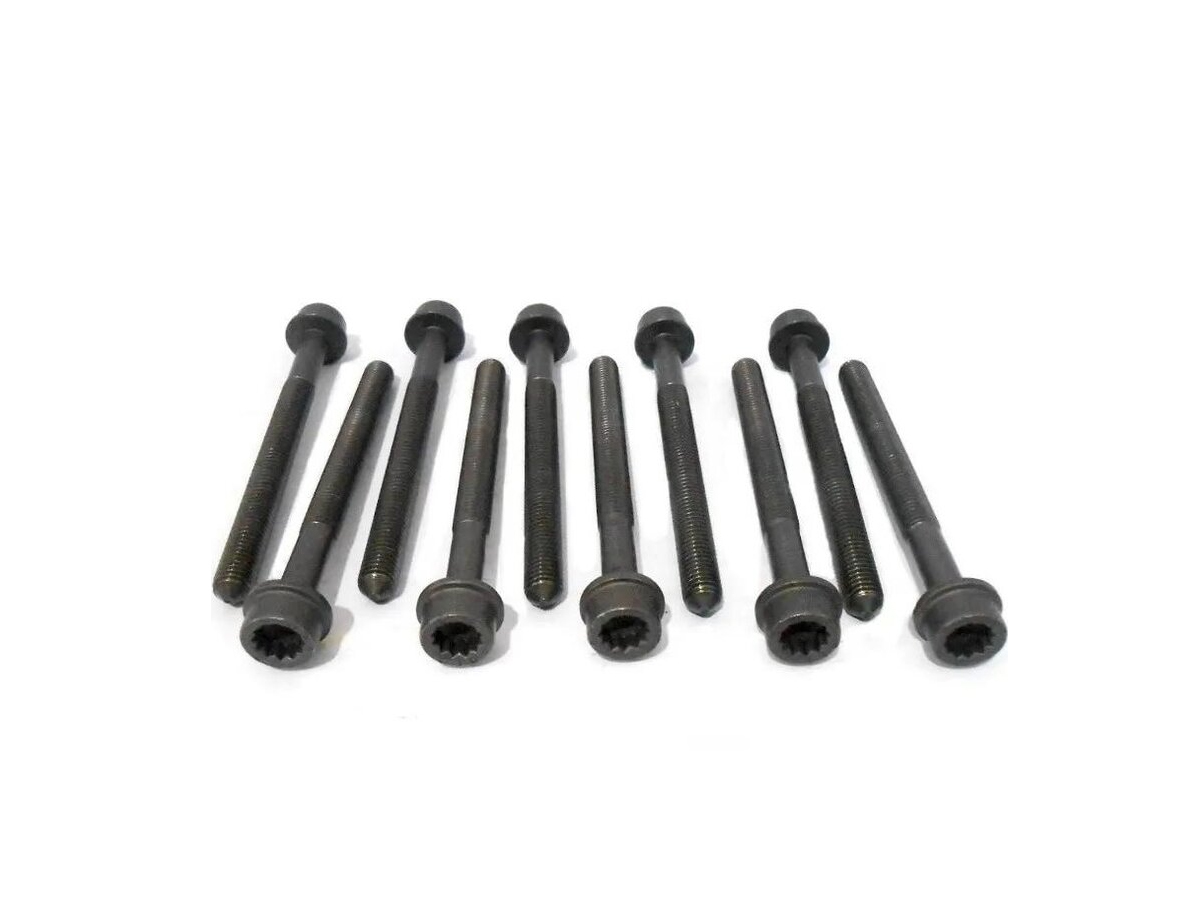

Cylinder head bolt set. SET OF 10
M10 x 115 x 85

Fits:
Porsche 95B.1 2.0L Macan 2014-18
Porsche 95B.2 (T2G) 2.0L Macan 2019-21
Porsche 9YA Cayenne 2.0L 2017>>

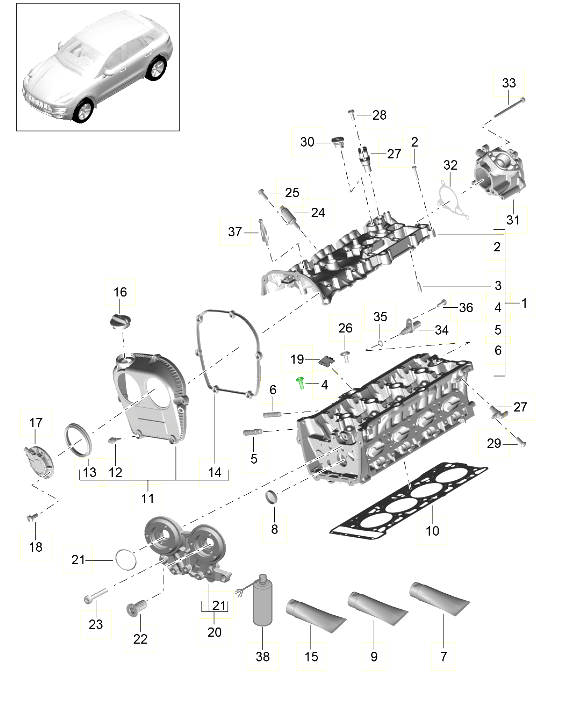

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9A700530502

The product you are viewing cross references to these numbers

Cylinder head bolt. M 11 X 1.5 X 140.
SET OF 8.

Fits:
Porsche 957 Cayenne S / GTS / Turbo 2008-10
Porsche 958 Cayenne S / GTS / Turbo 2011-14
Porsche 958 Cayenne V6 3.6L 2015-18
Porsche 95B Macan S 3.0L / Turbo 3.6L 2014-18
Porsche 970 Panamera 3.6L 2011-16
Porsche 970 Panamera S / GTS / Turbo 2011-16

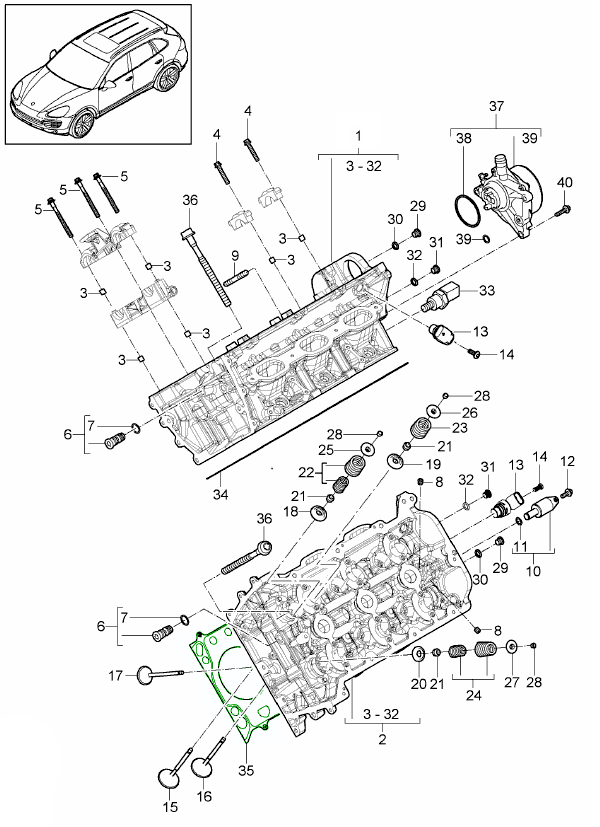

Click 'Zoom in' for large parts diagram.
Diagram ref no 35

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94810418110X8

The product you are viewing cross references to these numbers

Cylinder head bolt. 10 required, Sold each.
M10 x 115 x 85

Fits:
Porsche 95B.1 2.0L Macan 2014-18
Porsche 95B.2 (T2G) 2.0L Macan 2019-21
Porsche 9YA Cayenne 2.0L 2017>>

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9A700530502

The product you are viewing cross references to these numbers

Cylinder head bolt. M 11 X 1.5 X 140.
Price is for each.

Fits:
Porsche 957 Cayenne S / GTS / Turbo 2008-10
Porsche 958 Cayenne S / GTS / Turbo 2011-14
Porsche 958 Cayenne V6 3.6L 2015-18
Porsche 95B Macan S 3.0L / Turbo 3.6L 2014-18
Porsche 970 Panamera 3.6L 2011-16
Porsche 970 Panamera S / GTS / Turbo 2011-16

Click 'Zoom in' for large parts diagram.
Diagram ref no 35

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94810418110

The product you are viewing cross references to these numbers

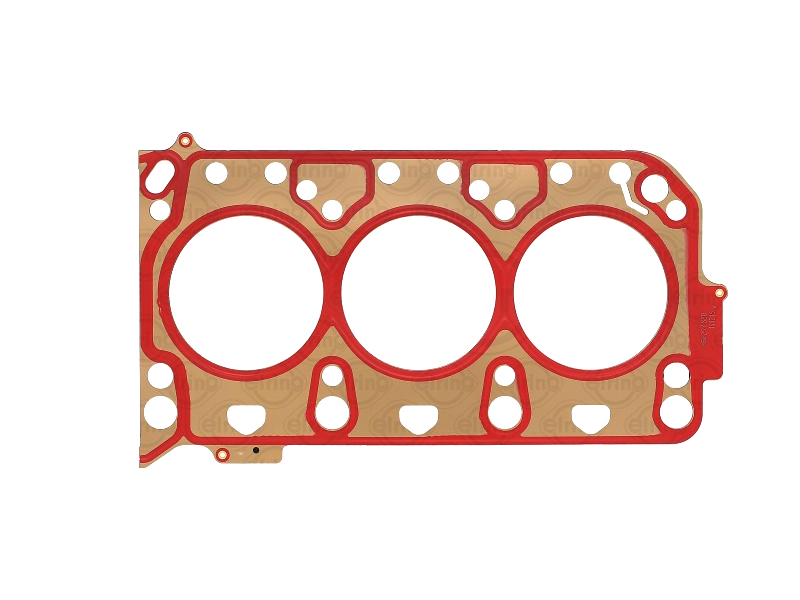

Cylinder head gasket. Cyl 4-6.

Fits:
Porsche 958 Cayenne 3.6L V6 Turbo / GTS 2014>>
Porsche Panamera 3.6L 2011>>
Porsche Macan S / Turbo / GTS 2014>>

Click 'Zoom in' for large parts diagram.
Diagram ref no 35

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94610417403

The product you are viewing cross references to these numbers

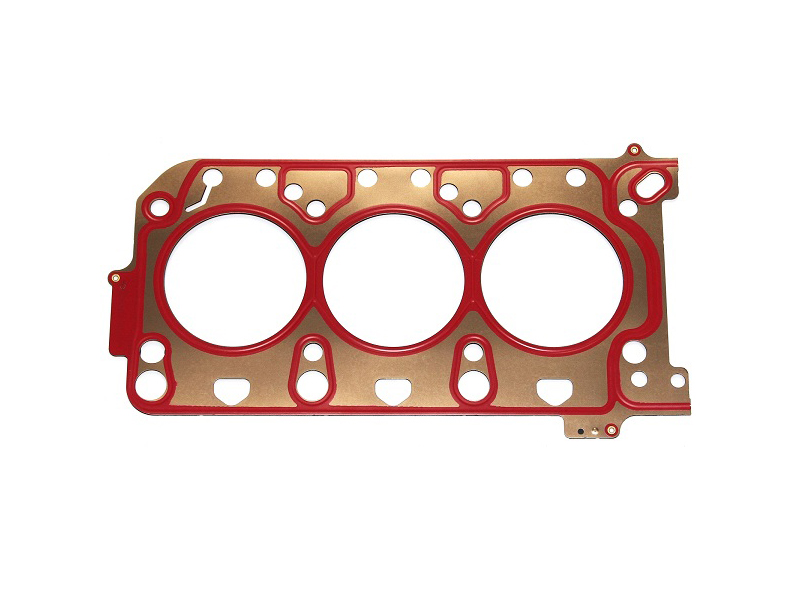

Cylinder head gasket Cyl. 1-3.

Fits:
Porsche 958 Cayenne 3.6L V6 Turbo / GTS 2014>>
Porsche Panamera 3.6L 2011>>
Porsche Macan S / Turbo / GTS 2014>>

Click 'Zoom in' for large parts diagram.

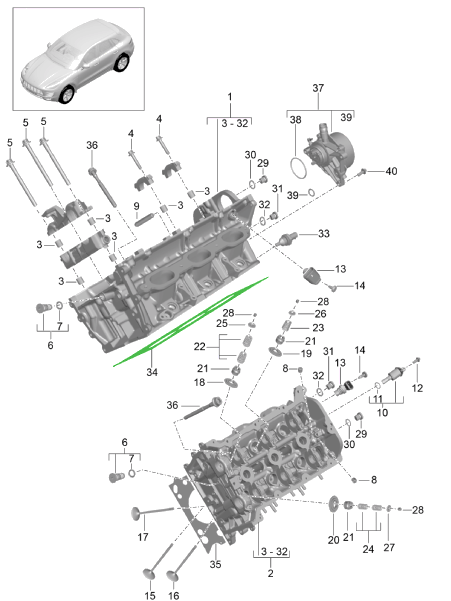

Diagram ref no 34

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94610417303

The product you are viewing cross references to these numbers

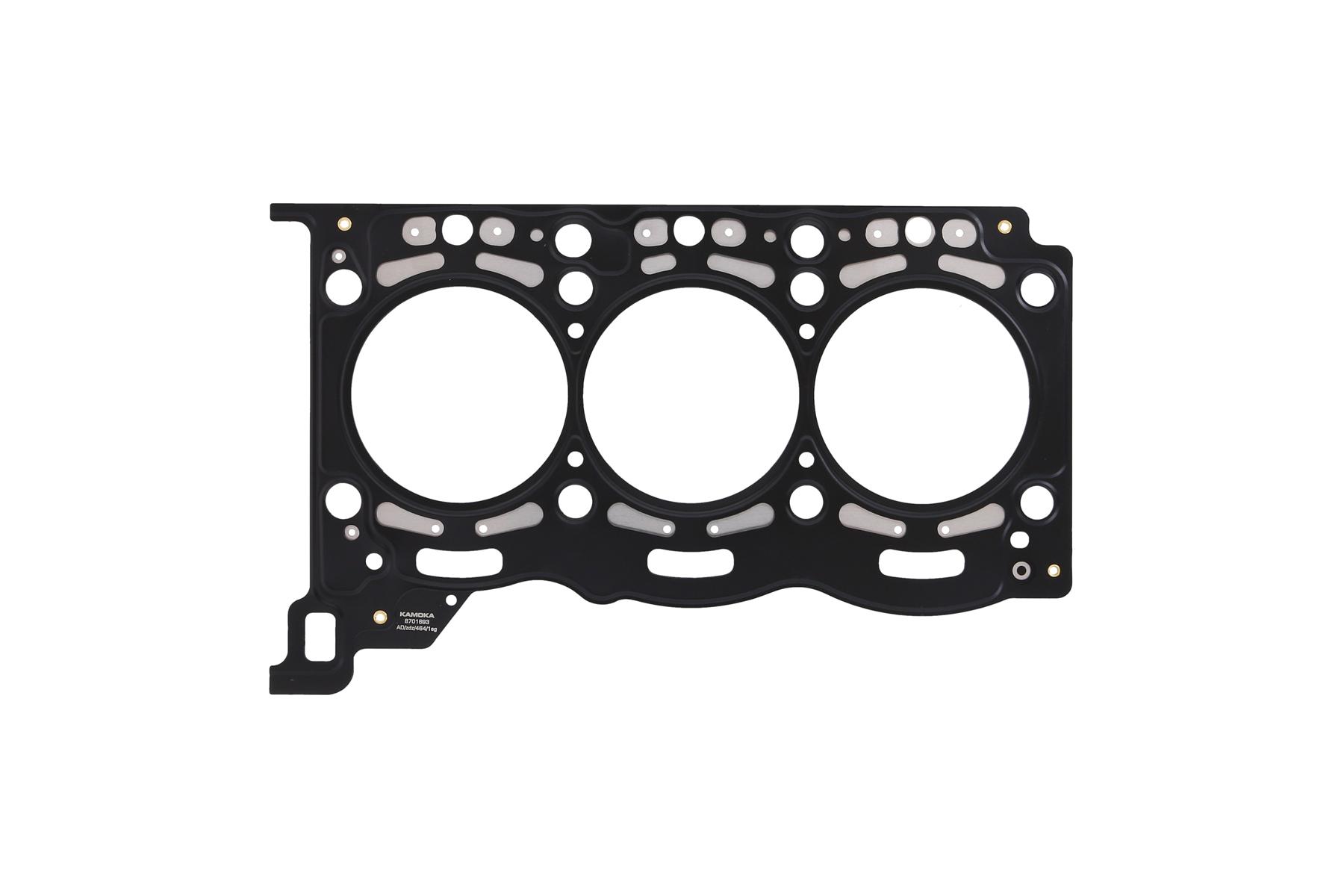

Cylinder head gasket set.

Fits:
Porsche 958 Cayenne 3.0ltr Diesel - 2011 to 2018
Porsche 95B Macan 3.0ltr Diesel - 2014 to 2018
Porsche 970 Panamera 3.0ltr Diesel - 2010 to 2016

Contents:

- Engine head gaskets
- Valve cover gaskets
- Valve cover seals
- Timing chain cover gaskets
- Oil filler cap seal
- Cover cap seal
- Valve stem seals
- Exhaust head to manifold gaskets
- Exhaust manifold to cat

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95810417311

The product you are viewing cross references to these numbers

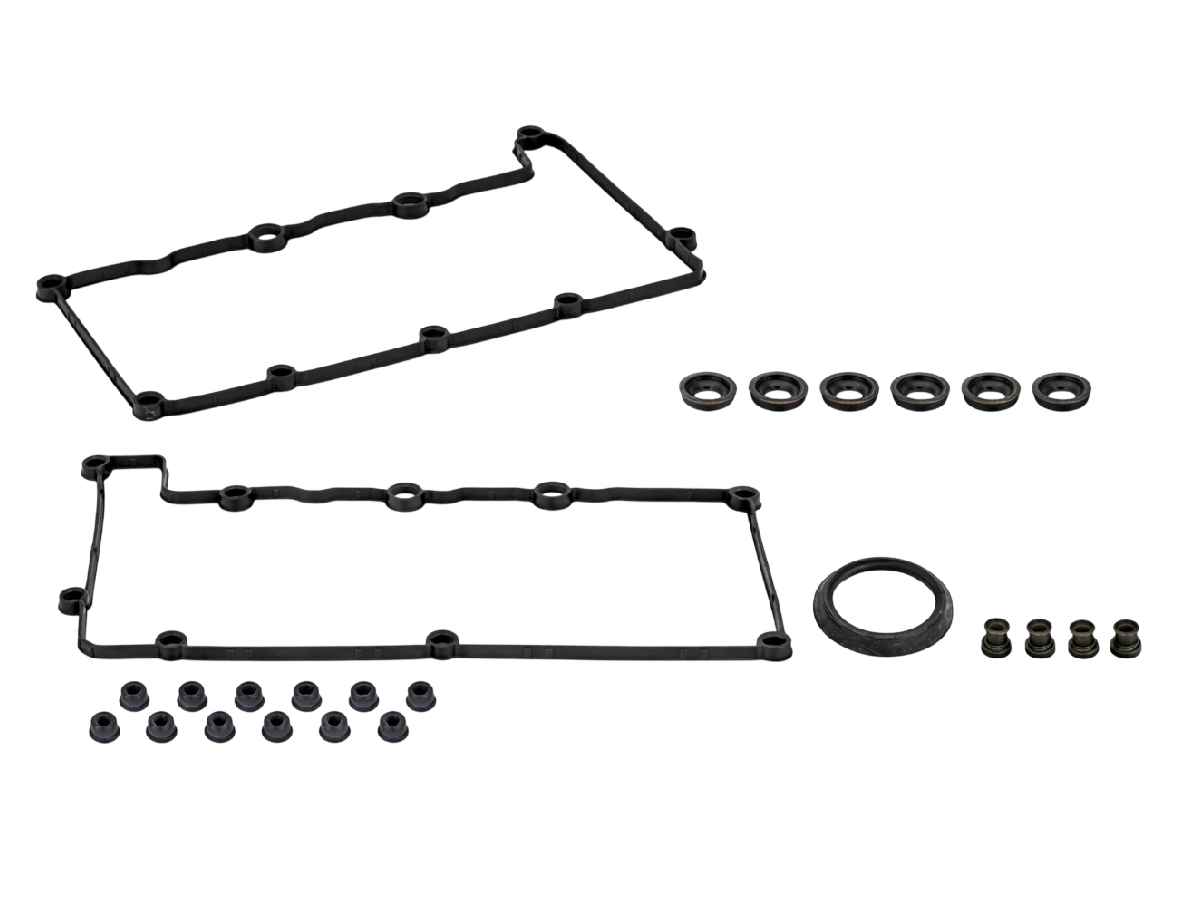

Cylinder head gasket set.

Fits:
Porsche 95B Macan 2.0ltr - 2014 to 2018

Contents:
- Engine head gasket
- Valve cover gaskets
- Valve cover seals
- Timing chain cover gaskets
- Oil filler cap seal
- Cover cap seal
- Valve stem seals
- Exhaust head to manifold gaskets
- Exhaust manifold to cat

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95810338310

The product you are viewing cross references to these numbers

Cylinder head gasket set.
(for engine codes:  CWF, CTM & CWD)

Fits:

• Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
• Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
• Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
• Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16


• Porsche 95B.1 Macan S Petrol 3.0L V6 (340Bhp) 2014-18

Contents:
- Engine head gaskets
- Valve cover gaskets
- Valve cover seals
- Timing chain cover gaskets
- Oil filler cap seal
- Cover cap seal
- Valve stem seals
- Exhaust head to manifold gaskets
- Exhaust manifold to cat

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94610417303

The product you are viewing cross references to these numbers

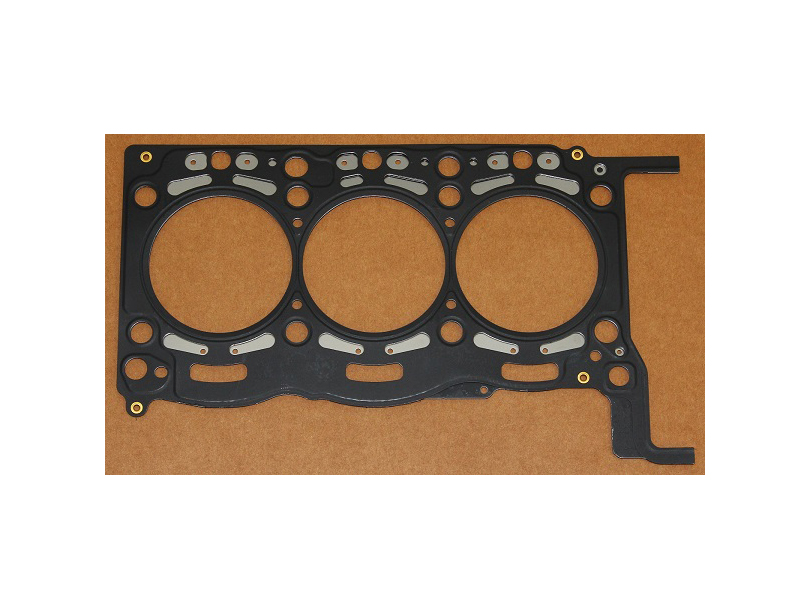

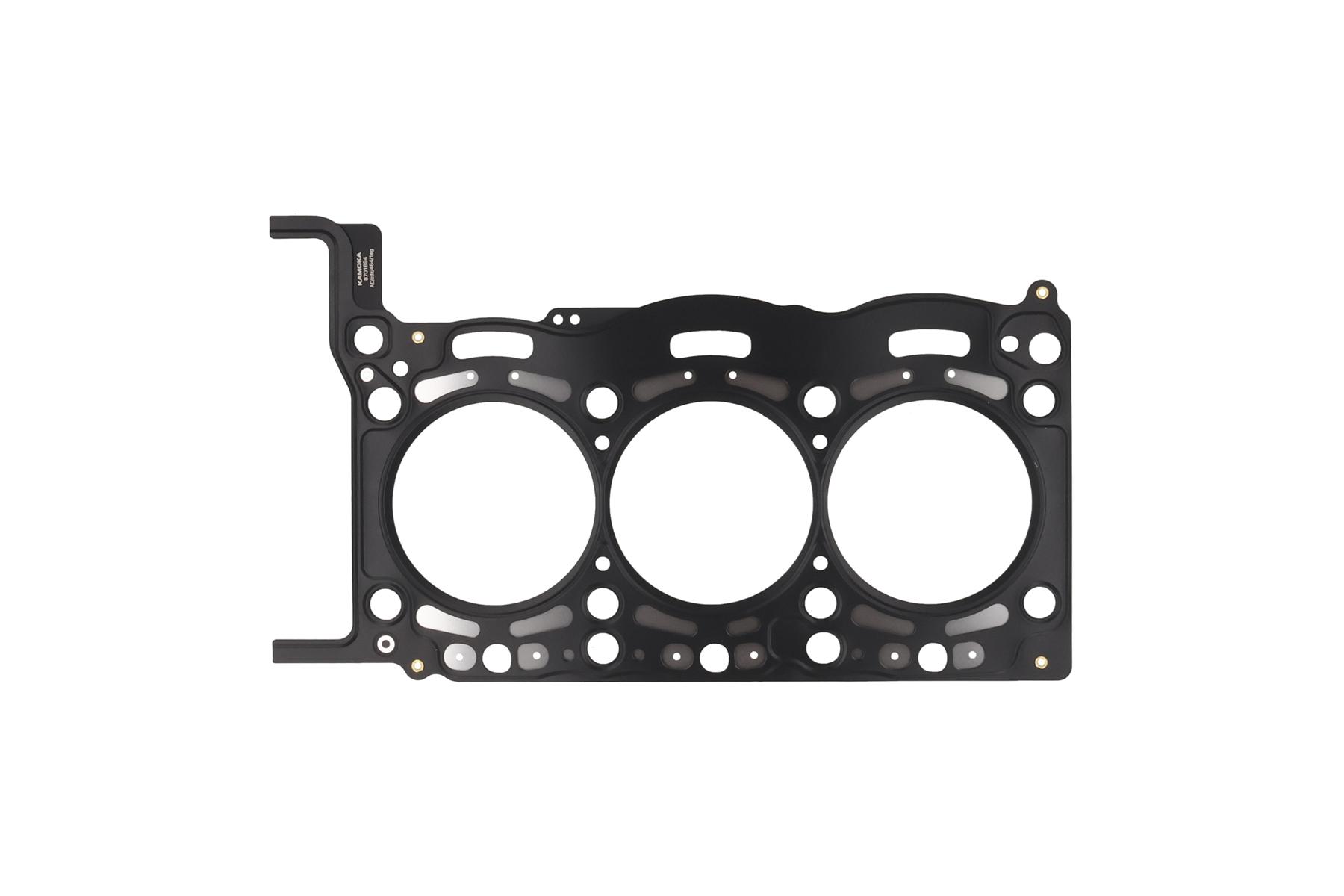

This OE Match cylinder head gasket is the 1.68 mm, three-hole version, it seals the joint between the cylinder head and engine block, containing combustion pressure and separating oil and coolant passages.

Fits

• Porsche 958 Cayenne 3.0L Diesel 2011–18
• Porsche 970 Panamera 3.0L Diesel 2011–16
• Porsche 95B Macan 3.0L Diesel 2014–18

  Check fitment for your specific vehicle (model, year, engine) before ordering. Confirm the required cylinder bank, part reference and gasket thickness.

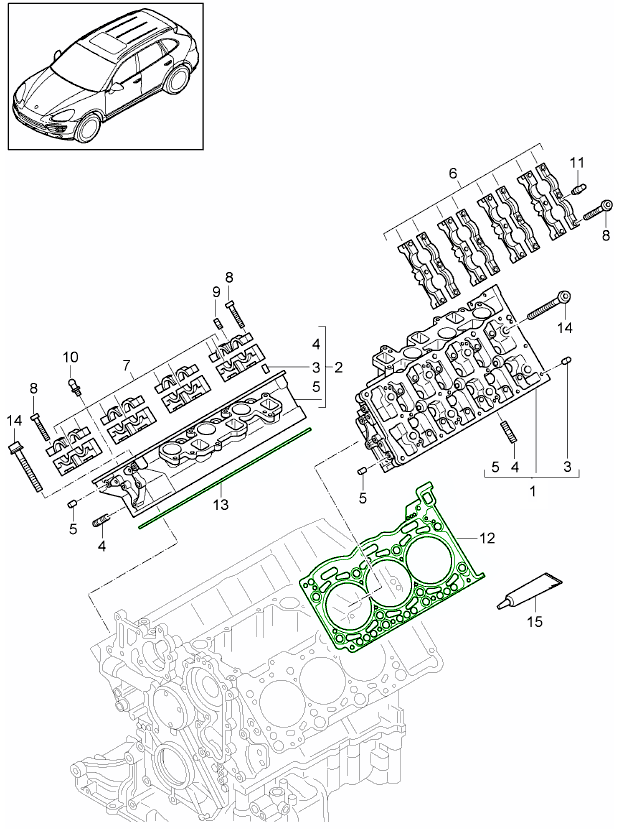

  Diagram ref no 12 (cyl. 4-6) or 13 (cyl. 1-3)

  What Is This Part?

The cylinder head gasket forms the sealing interface beneath the cylinder head. The head bolts clamp it between the mating surfaces, where it seals around the combustion chambers and fluid openings. Its effectiveness depends on the condition of those surfaces and the correct installation procedure. It is renewed during cylinder head removal and relevant engine rebuilding work.

What Does This Part Do?

• Contains combustion pressure: Seals the combustion chambers at the head-to-block joint.
• Seals coolant passages: Helps keep coolant within its intended circuit.
• Seals oil passages: Helps contain lubricating oil where it passes through the joint.
• Separates engine circuits: Maintains sealing boundaries between combustion gases, oil and coolant.

  Why Replace This Part?

A failed gasket can allow combustion gases or fluids to cross the joint. Overheating, distorted surfaces or incorrect clamping can contribute to failure; replacing the gasket alone will not correct these underlying problems. Renew it when the head is removed, checking surface condition and following the engine-specific fitting procedure.

When to Replace This Part?

• Confirmed leakage: Testing identifies a leak through the head gasket.
• Fluid contamination: Oil and coolant mixing requires investigation.
• Cooling-system pressure: Combustion gases are detected in the coolant.
• Visible damage: Inspection reveals burnt sealing areas or damaged surfaces.
• Head removal: Fit a new gasket during reassembly. These indications require diagnosis rather than proving gasket failure on their own.

  Where Is This Part Fitted?

Location: Between the cylinder head and engine block on the applicable bank of the V6 diesel engine. Cylinder-bank applications cover cylinders 1–3 or 4–6 according to the selected reference; confirm the required version before fitting.

Technical Details

• Thickness: 1.68 mm.
• Identification: Three holes.

  FAQs

• How do I confirm the thickness?
  Check the identification holes and follow the engine manufacturer's selection procedure, including piston-protrusion measurements where required.
• Does overheating automatically mean the gasket has failed?
  No. Diagnose the cooling system and check the head and block before deciding on the repair.

  Product Summary

• Product: Cylinder head gasket.
• Brand: OE Match.
• Specification: 1.68 mm, three-hole identification.
• Selection checks: Engine application, cylinder bank and gasket reference.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95810417

The product you are viewing cross references to these numbers

This OE Match cylinder head gasket is for cylinders 4–6, It seals the joint between the cylinder head and engine block, containing combustion pressure and separating oil and coolant passages.

Fits

• Porsche 958 Cayenne 3.6L V6 Turbo / GTS 2014>>
• Porsche Panamera 3.6L 2011>>
• Porsche Macan S / Turbo / GTS 2014>>

  Diagram ref no 35

  Check fitment for your specific vehicle (model, year, engine) before ordering. Confirm that the gasket required is for cylinders 4–6.

  What Is This Part?

The cylinder head gasket is the sealing layer clamped between the cylinder head and the engine block. Its openings align with the cylinders and the passages crossing this joint. It must seal combustion gases while keeping engine oil and coolant within their respective circuits. Its sealing action depends on the condition of the mating surfaces and the correct clamping force from the cylinder-head fasteners.

What Does This Part Do?

• Contains combustion pressure: Seals around the combustion chambers at the head-to-block joint.
• Seals coolant passages: Helps prevent coolant escaping across the joint.
• Seals oil passages: Helps contain engine oil where it passes between the block and cylinder head.
• Separates engine circuits: Maintains sealing boundaries between combustion gases, oil and coolant.

  Why Replace This Part?

Replacement may be needed when testing identifies leakage through the cylinder-head joint or inspection reveals damaged sealing areas. Overheating, distorted mating surfaces and incorrect bolt tightening can compromise the seal. A new gasket alone will not correct a warped cylinder head or an unresolved cooling-system fault, so the underlying cause must be investigated during the repair.

During cylinder-head work, have the head and block sealing surfaces checked before reassembly. Follow the engine-specific requirements for surface preparation, fastener renewal and tightening sequence rather than assuming that fitting a gasket is the only work required.

When to Replace This Part?

• Confirmed joint leakage: Testing identifies combustion-gas, oil or coolant leakage through the head-gasket joint.
• Visible sealing damage: Inspection after dismantling reveals burning, erosion or damage around sealing areas.
• Overheating-related damage: Examination finds gasket damage or distorted mating surfaces following overheating.
• Incorrect previous installation: Inspection reveals misalignment, damaged sealing areas or inadequate clamping. Coolant loss and overheating require diagnosis; neither proves gasket failure on its own.

  Where Is This Part Fitted?

Location: Between the cylinder head and engine block on the bank containing cylinders 4–6.

Technical Details

• Cylinder position: Cylinders 4–6.
• Macan application identifiers: CTMA, CTM, CTLA, CTL, DCNA, DCN, DHKA, DHK.
• Panamera 3.6L application identifiers: 4620, 4640, CWAA, CXNA.

  Product Summary

• Product: Cylinder head gasket for cylinders 4–6.
• Brand: OE Match.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94610417403

The product you are viewing cross references to these numbers

This OE Match cylinder head gasket is for cylinders 1–3, It seals the joint between the cylinder head and engine block, containing combustion gases and separating the oil and coolant passages.

Fits

• Porsche 958 Cayenne 3.6L V6 Turbo / GTS 2014>>
• Porsche Panamera 3.6L 2011>>
• Porsche Macan S / Turbo / GTS 2014>>

  Check fitment for your specific vehicle (model, year, engine) before ordering. Confirm the cylinders 1–3 position against the existing gasket and exact engine specification.

  Diagram ref no 34

  What Is This Part?

A cylinder head gasket forms the sealing interface beneath the cylinder head. When the head is secured, the gasket is compressed between the mating surfaces to seal the combustion chambers and the fluid passages crossing that joint. This version is identified for cylinders 1–3, so the cylinder-bank application matters when selecting it for a repair. Effective sealing also depends on the condition of the head and block surfaces and the correct installation procedure.

What Does This Part Do?

• Seals combustion pressure: Closes the head-to-block joint around the combustion chambers.
• Seals coolant passages: Helps contain coolant where it passes between the block and cylinder head.
• Seals oil passages: Helps contain the lubricating oil passing through the joint.
• Separates engine circuits: Maintains sealing boundaries between combustion gases, coolant and oil.

  Why Replace This Part?

Replacement may be needed when inspection confirms leakage or damage at the cylinder head joint. Overheating, distorted mating surfaces, incorrect positioning or inadequate clamping can compromise the seal. The underlying cause should be investigated rather than assuming that a new gasket alone will resolve the problem.

During cylinder head repairs, check surface condition, locating sleeves and fastening requirements before reassembly. Follow the engine-specific preparation and tightening instructions; a gasket cannot compensate for damaged or incorrectly prepared mating surfaces.

When to Replace This Part?

• Confirmed joint leakage: Oil or coolant is traced to the head-to-block interface rather than a nearby seal or connection.
• Combustion leakage: Testing identifies combustion gases escaping through the cylinder head joint.
• Overheating damage: Inspection reveals gasket damage or distortion of the adjoining surfaces.
• Visible gasket damage: Dismantling reveals burnt sealing areas, damaged openings or evidence of incorrect seating.

  Where Is This Part Fitted?

Location: Between the engine block and the cylinder head serving cylinders 1–3, within the cylinder head assembly.

Technical Details

• Cylinder position: Cylinders 1–3.
• Macan engine/model identifiers: CTMA, CTM, CTLA, CTL, DCNA, DCN, DHKA, DHK.
• Panamera 970 (G1) 3.6L engine/model identifiers: 4620, 4640, CWAA, CXNA.

  FAQs

• Does low compression automatically mean this gasket has failed?
  No. Compression and leak-down testing can help establish the source of a sealing problem before dismantling or selecting replacement parts.
• Should the cylinder head be checked during replacement?
  Yes. Check the mating surfaces for damage and flatness, particularly after overheating, and follow the engine-specific repair instructions.

  Product Summary

• Product: Cylinder head gasket for cylinders 1–3.
• Brand: OE Match.
• Fitting position: Cylinder head-to-block joint.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94610417303

The product you are viewing cross references to these numbers

Cylinder head gasket. 1.58mm, 1 hole.

Fits:
Porsche 958 Cayenne 3.0L Diesel 2011-18
Porsche 95B Macan 3.0L Diesel 2014-18
Porsche 970 Panamera 3.0L Diesel 2010-16

Diagram ref no 12 (cyl. 4-6) or 13 (cyl. 1-3)

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95810417

The product you are viewing cross references to these numbers
