Design911 Design 911 supply Porsche parts, Porsche spares and Porsche accessories, to both retail and to the trade. Our Porsche product and accessory range includes brakes, exhausts, tyres, wheels and Porsche panels and interiors. https://www.design911.co.uk/images/schemaLogo.png https://www.design911.co.uk/images/schemaLogo.png https://www.design911.co.uk Facebook Instagram

GKN

GKN
About GKN

GKN for Porsche

GKN parts for Porsche models are focused on driveline performance, combining technical expertise with a wide range of components designed to support everything from everyday driving to more demanding, high-performance use

A Quick Look at GKN

GKN Automotive’s market-leading Driveline division demonstrates strength in depth, with an extensive portfolio of products that combine value with technical expertise. The technologies span high-volume low-cost vehicles to top end premium cars with complex all-wheel drive driving dynamics. These world-class products are being constantly refined and improved for global Porsche customers.

Choosing the Right Fit for Your Porsche

Where GKN is listed for Porsche, use the supplied model coverage and OE references to confirm suitability. Check details that commonly affect fitment such as model year, side/position, and connector type where relevant.

  • Typical reasons people replace these parts include curing driveline vibration, clicking noises on full lock, and restoring smooth, confident acceleration.
  • Common symptoms include clicking on full lock, vibration under load, torn CV boots with grease loss, clunks on take-up, and driveline shudder.
  • Practical tip: a torn CV boot caught early can sometimes be fixed with a boot-only repair, but joints that have run dry or become noisy usually need full replacement.
  • Practical tip: if both sides are of similar age, many owners choose to replace them together to keep wear even across the axle.

Browse by Category

If you already know the area you are working on, start with the category and then filter by Porsche model. Where real-world symptoms and typical reasons to replace are provided, use them to keep the wording grounded.

Accessories — Porsche accessories in this context are about making the car easier to live with or personalise, from practical storage and interior items to protection products. Owners typically add or change accessories when existing pieces look tired, needs change, or they want extra comfort, convenience, or a different look. Common issues include worn mats, broken clips, rattles from loose fittings, or poor-quality add-ons marking original trim.

  • Check whether an accessory is specifically listed for your Porsche model, interior type, and any factory options you have, and confirm if it can be removed without damage.
  • Before ordering, review whether drilling or permanent modifications are required, especially on higher-value or collector cars.

Gearbox / Transmission — This category covers components that keep your Porsche selecting gears cleanly and transmitting power correctly, from clutch parts to gearbox internals and mounts. Parts are usually changed to address whining, crunching between gears, leaks, or difficulty selecting gears, and also during upgrades such as stronger clutches or different ratios. Many drivetrain refreshes are done proactively on higher-mileage cars to maintain reliability.

  • Before assuming the gearbox itself is faulty, consider checks on clutch, linkage, mounts and correct oil type/level, as these can mimic gearbox problems.
  • If you notice new noises or harsh shifts, avoid extended driving until the cause is investigated, as running a worn transmission can accelerate internal damage.

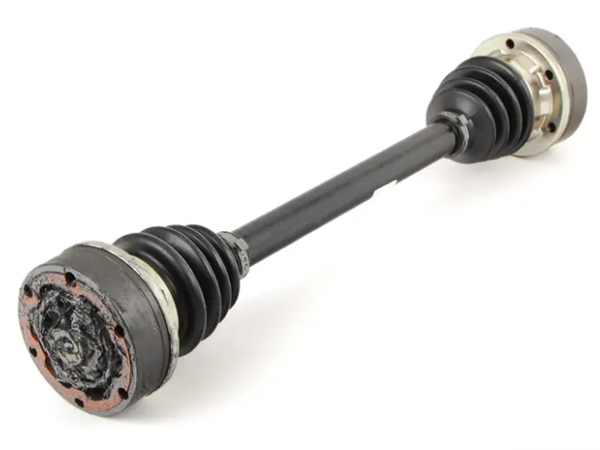

Driveshafts & Parts — Driveshafts and related hardware transfer torque from the gearbox or differential to the wheels while managing suspension and steering movement. They are commonly replaced to cure vibrations, clicking from CV joints, clunks when taking up drive, or to handle higher torque on tuned cars. Correct choice depends on drivetrain layout (RWD/AWD), shaft length, and flange or joint type.

  • If you feel vibration under acceleration or hear clunks on take-up, inspect driveshaft joints, boots, and couplings early to prevent damage to the gearbox or differential.
  • After installation, recheck all fasteners to specified torque and road-test carefully, as driveline components are sensitive to imbalance and loose hardware.

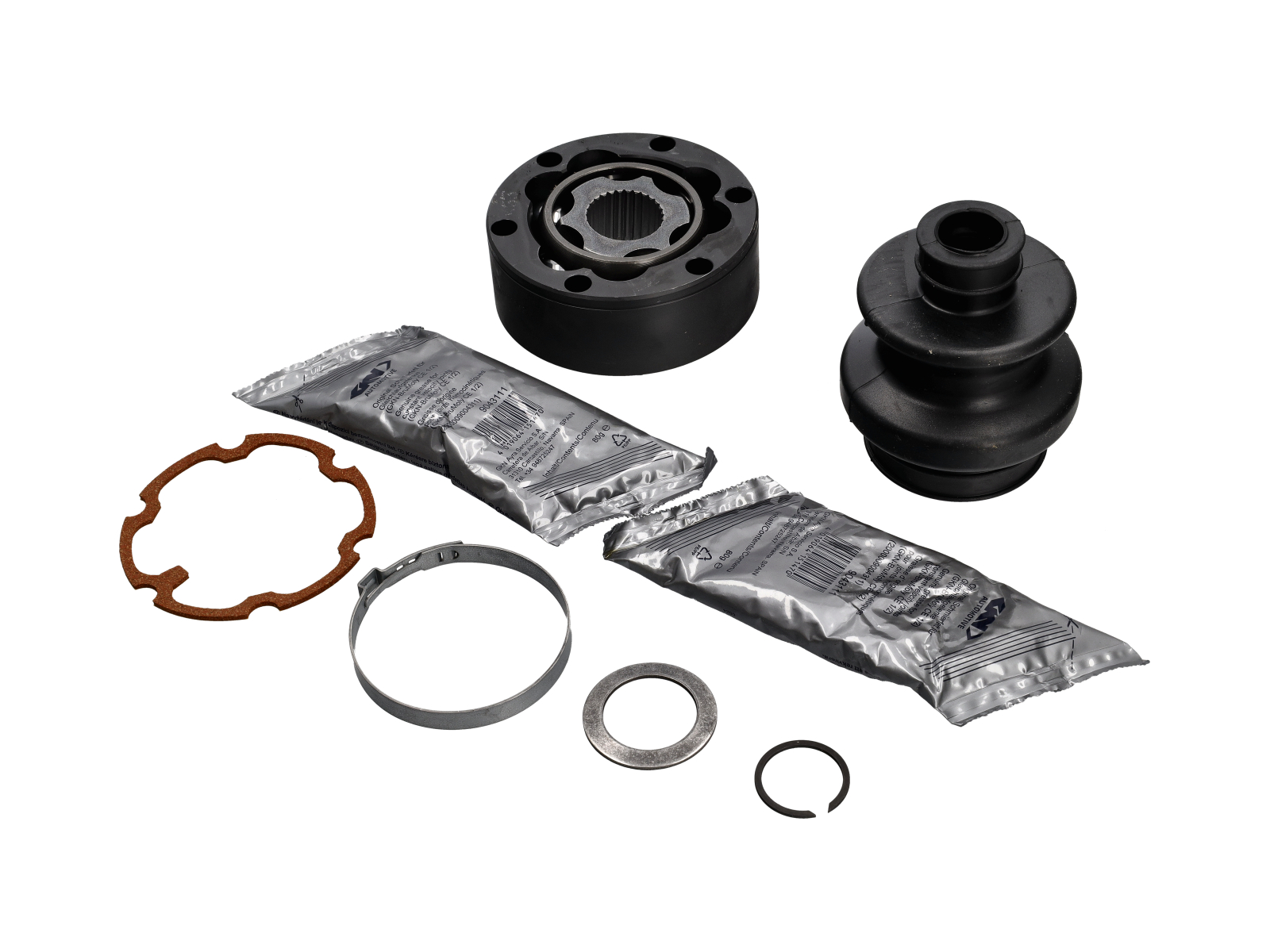

CV Joints Kits — CV joint kits provide the moving joint at each end of many Porsche driveshafts, allowing smooth power delivery through suspension and steering travel. They are typically chosen when there is clicking on turns, vibration under acceleration, or noticeable play in the joint, especially when the shaft itself is still serviceable. Kits are a common solution on higher-mileage cars where joints are worn but the core shaft remains in good condition.

  • If a CV joint is already noisy or rough, fitting a boot alone is unlikely to be a lasting repair; a complete CV joint kit is usually the better option.
  • Use the correct CV-specific grease supplied or specified, and ensure boots and clips are seated properly to avoid early failure.

CV Boots and Kits — CV boots seal and protect the CV joints by keeping grease in and contamination out. They are often replaced at the first signs of cracking, splitting, or grease leakage around the inner wheel arch, long before the joint itself has failed. Early boot replacement is a cost-effective way to extend joint and driveshaft life, especially on cars driven in wet or salty conditions.

  • Inspect CV boots regularly for cracks around the folds or damp, greasy areas, as catching a failing boot early can prevent much more expensive driveline repairs.
  • When replacing a boot, always use new clamps and the correct quantity of grease, and consider doing inner and outer boots together on the same shaft.

Explore GKN at Design911

View the current GKN range for Porsche at Design911, then filter by model and category to narrow down to the right parts.

DISPLAYING 1 to 16 (of 42 products)
1 2 3
PAD498201/1
Product Information
Product Information
Inner CV Joint Boot / Repair Set
High-quality GKN inner CV joint boot / repair set for the Porsche Macan-e 95C all-wheel drive from 2024 onwards, designed as an aftermarket replacement for Porsche OE reference PAD498201.
Fitting Position: Front Axle Left, Front Axle Right, transmission sided

Fits:
for Four-wheel drive models (option code: 1X1)
Porsche 95C Macan-e 4 Electric 2024>>
Porsche 95C Macan-e 4S Electric 2024>>
Porsche 95C Macan-e GTS Electric 2024>>
Porsche 95C Macan-e Turbo Electric 2024>>

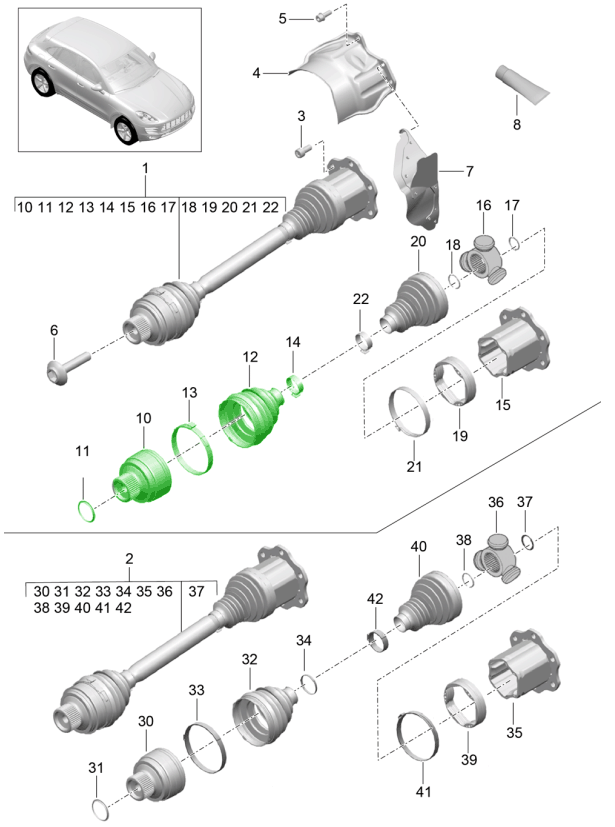

Diagram ref no 3

Inner Diameter 1: 28 mm
Inner Diameter 2: 72 mm
Height: 104 mm
Joint Type: Tripod Joint
Bellows: Material TPE (thermoplastic elastomer)
New Part
Supplementary Article: with grease

The CV joint boot is an essential part of the driveshaft assembly. It forms a flexible protective seal around the joint, retaining the specialised lubricant required for smooth operation while preventing dirt, water and other road contaminants from reaching the precision internal components.

A damaged or split CV boot should be replaced as soon as possible. Once the seal is compromised, grease can escape and contaminants can enter the CV joint, potentially causing accelerated wear and eventually requiring replacement of the complete joint or driveshaft.

Common Symptoms of a Failed CV Boot
•  Grease visible around the drive shaft or suspension area
•  Split, cracked or torn rubber boot
•  Grease loss from the inner CV joint
•  Clicking, knocking or vibration if the CV joint has become worn
•  Dirt or water contamination inside the CV joint
•  Boot clamp failure or loose boot seating
•  MOT / roadworthiness failure due to damaged CV boot
  Damage found during drivetrain or suspension inspection.

When to Replace This Part
•   If the inner CV boot is split, cracked or leaking grease
•   If the boot clamp has failed or the boot no longer seals correctly
•   During drive shaft repair or inspection
•   If the CV joint is being cleaned, repacked with grease or serviced
•   During suspension or drivetrain overhaul
•   After road debris, impact or service damage to the boot
•   Before CV joint wear develops from contamination

Where It Fits on the Car
This repair set fits at the inner CV joint area of the drive shaft, where the shaft connects towards the drive unit / differential side. Correct installation requires proper cleaning, correct grease application, secure clamp fitment and inspection of the CV joint. If the joint has already been run without grease or has contamination damage, the CV joint or complete drive shaft should also be inspected.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAD498201
PAD498201

The product you are viewing cross references to these numbers
97033229310/1
Product Information
Product Information
Drive shaft CV joint bellow, inner or outer
Designed as an aftermarket replacement for Porsche OE reference 97033229310, this boot is suitable for the rear driveshaft CV joint and can be used on either the inner transmission-side or outer wheel-side position where this OE reference is specified.
Sold individually

Fits:
Porsche 970.1 Panamera 4.8L Turbo 2010 - 2013 (4870)
Porsche 970.2 Panamera 4.8L Turbo 2014 - 2016 (CWBA, CWB)
 * cars with option code:  219  - differential

Porsche 970.1 Panamera 2010 - 2013
Porsche 970.2 Panamera 2014 - 2016
* cars with option code: 220 - Locking differential 40 %
* cars with option code: 221 - PTV Plus, el. controlled rear-diff. lock

Porsche 991 GT2 RS 2014 - 2020
 * option code: D97 - 6-cylinder turbo 3.8 L 515 KW GT2-RS

Porsche 991 GT3 RS 2014 - 2021
 * option code: 250 -  PDK transmission (dual clutch)

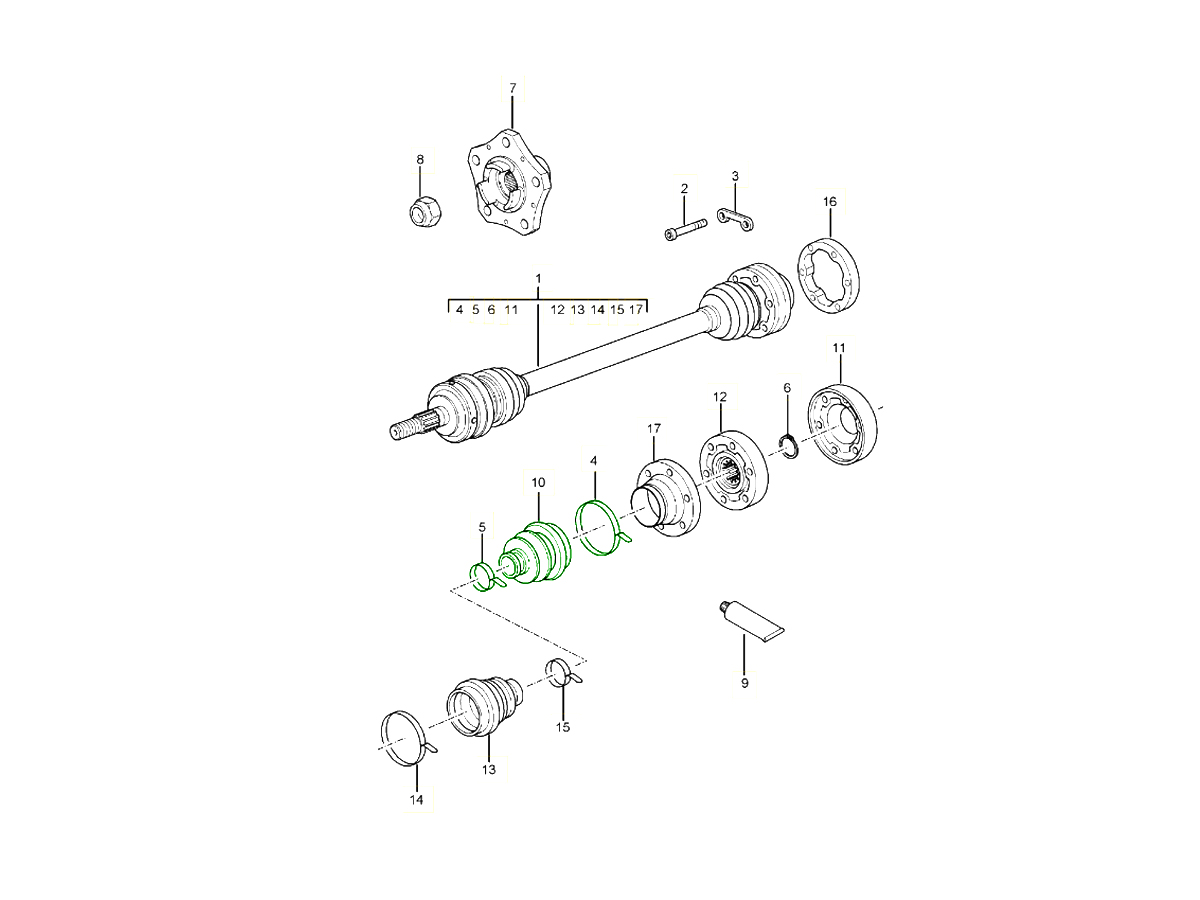

Diagram ref no 7

Inner Diameter 1: 34 mm
Inner Diameter 2: 66 mm
Height: 75 mm
Bellows Material: NBR (nitrile butadiene rubber)
New Part
Supplementary Article:  with grease

High-quality GKN CV joint boot kit GKNB11084 for selected Porsche Panamera 970 and Porsche 911 Type 991 GT3 RS / GT2 RS applications.

The CV joint boot performs an essential protective function within the drivetrain. It retains the specialised grease required to lubricate the constant-velocity joint while preventing dirt, water and road debris from contaminating its internal components.

If the boot becomes split, cracked or damaged, grease can escape from the joint and contaminants can enter. Continued use in this condition can cause rapid CV joint wear and may eventually require replacement of the complete joint or driveshaft.

What Does the CV Joint Boot Do?
A constant-velocity joint allows the driveshaft to transfer engine torque while accommodating changes in suspension position and driveshaft angle. The precision internal components of the joint operate under substantial load and rely on specialised grease to minimise friction and wear.

The flexible CV boot creates a sealed protective environment around the joint by:
Keeping CV joint grease inside
Preventing dirt from entering
Protecting against water and moisture
Allowing the joint and driveshaft to articulate normally

Maintaining an intact boot is therefore essential to maximising the service life of the CV joint and driveshaft.

Why Replace a Damaged CV Boot?
CV joint boots are continuously subjected to:
•   High rotational speeds
•   Repeated flexing
•   Heat
•   Road dirt
•   Moisture
•   Temperature changes
•   Drivetrain movement
•   Exposure to grease and other automotive fluids.

Over time, the rubber may harden, crack or split.

Common signs of CV boot deterioration include:
•  Visible cracking
•  Torn or split rubber
•  Grease leaking from the boot
•  Grease sprayed onto surrounding suspension components
•  Loose or damaged retaining clamps
•  Dirt or moisture around the CV joint
  Clicking or knocking noises
•  Vibration during acceleration
•  Excessive drivetrain play

Replacing a damaged boot early can protect an otherwise serviceable CV joint and help avoid the significantly greater cost of replacing the complete joint or driveshaft.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

97033229310
97033229310

The product you are viewing cross references to these numbers
97033229300/1
Product Information
Product Information
CV Joint boot KIT Constant Velocity Joint boot, inner or outer
Designed as a replacement for Porsche OE reference 97033229300, this CV joint boot can be used on the applicable inner or outer constant-velocity joint of the driveshaft assembly.

Fits:
Porsche 970 Panamera 2011 - 2016
 * cars with option code:  219  - differential
 * not for Turbo models

Porsche 982 (718) Boxster S 2017>>
Porsche 982C (718C) Cayman S 2017>>

Diagram ref no 7

Inner Diameter 1: 33 mm
Inner Diameter 2: 60 mm
Height: 78 mm
Bellows Material: NBR (nitrile butadiene rubber)
New Part
Supplementary Article: with grease

High-quality GKN CV joint boot kit GKNB11083 for selected Porsche Panamera 970, 718 Boxster S and 718 Cayman S models.

The CV joint boot is an essential drivetrain component that keeps the specialised lubricating grease contained within the joint while protecting the internal CV joint components from dirt, water, road debris and other contaminants.

If a CV boot becomes cracked, split or damaged, grease can escape and contaminants can enter the joint. Continued use in this condition can quickly accelerate CV joint wear and may eventually require replacement of the complete CV joint or driveshaft.

The GKNB11083 is manufactured from durable NBR nitrile rubber, providing the flexibility required to accommodate constant driveshaft movement while maintaining an effective protective seal.

What Does a CV Joint Boot Do?
The constant-velocity joint allows the driveshaft to transmit engine torque while accommodating changes in suspension movement and driveshaft angle.

The joint contains precisely machined internal components that rely on specialised high-performance grease for lubrication.

The CV boot forms a flexible protective seal around the joint, performing two critical functions:
 Keeping the lubricating grease inside the CV joint
Preventing dirt, water and abrasive contaminants from entering.

Maintaining an intact CV boot is therefore essential to the service life of the CV joint and complete driveshaft assembly.

Why Replace a Damaged CV Boot?
CV boots are continuously exposed to:
  Repeated flexing
  High rotational speeds
  Heat
  Road dirt
  Water and moisture
  Grease
  Temperature changes
  Suspension and drivetrain movement.

Over time, the rubber can harden, crack or split. Common signs of CV boot deterioration include:
  Visible cracks in the boot
  Split or torn rubber
  Grease leaking from the joint
  Grease sprayed onto suspension components
  Loose or damaged retaining clamps
  Dirt or moisture around the CV joint
  Clicking or knocking noises
  Drivetrain vibration
  Excessive CV joint play.

Replacing a damaged boot before the joint itself becomes worn can significantly reduce repair costs.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

97033229300
97033229300

The product you are viewing cross references to these numbers
97034925900/1
Product Information
Product Information
CV Joint boot KIT Constant Velocity Joint boot, Front axle, inner.
This CV boot protects the inner constant velocity joint on the front drive shaft, helping retain grease, prevent contamination and maintain smooth front axle drivetrain operation.

Fits:
Porsche 970.1 Panamera 4 / 4S / Turbo >>2010
*  All-wheel drive - option code: 339

Diagram ref no 12

Inner Diameter 1: 27 mm
Inner Diameter 2: 94 mm
Height: 108 mm
Joint Type: Flexible Joint
Disc Bore Ø: 8.5 mm
Number of bores: 6 Bolt
Hole Circle: Ø 78 mm
Bellows Material: TPE (thermoplastic elastomer)
New Part
Supplementary Article:  with cap,  with grease

High-quality GKN inner CV joint boot kit for early Porsche Panamera 970.1 all-wheel-drive models, designed as a replacement for Porsche OE reference 97034925900.

The GKNB20641 is fitted to the inner, transmission-side CV joint of the front driveshaft and is suitable for use on either the front-left or front-right side.

The CV joint boot is an essential protective component of the driveshaft assembly. It keeps the specialised CV joint grease contained around the joint while preventing water, dirt, road debris and other contaminants from entering.

A damaged or split boot can quickly lead to grease loss and contamination of the CV joint. If left unattended, this can cause accelerated wear and may eventually require replacement of the complete CV joint or driveshaft.

What Does the CV Joint Boot Do?
The constant-velocity joint allows the driveshaft to transfer power while accommodating movement between the drivetrain, suspension and wheel. To operate correctly, the joint requires specialised grease and must remain protected against contamination.

The flexible CV boot creates this protective seal while allowing the driveshaft and joint to move naturally during normal vehicle operation.

The GKNB20641 is positioned on the inner end of the front driveshaft, closest to the transmission / differential.

Why Replace a Damaged CV Boot?
CV boots are continuously exposed to:
•  Heat Road dirt Water and moisture
•  Repeated flexing
•  Drivetrain movement
•  Grease and other automotive fluids

Changes in temperature Over time, the boot material may become cracked, split or damaged. Common signs of a failing CV boot include:
•   Visible cracks or splits
•   Grease leaking around the driveshaft
•   Grease deposited on surrounding suspension components
•   Loose or damaged retaining clamps
•   Dirt or moisture entering the joint
•   Clicking or knocking noises
•   Vibration under acceleration
•   Excessive drivetrain play

Replacing a damaged boot early can help preserve an otherwise serviceable CV joint and avoid the additional expense of replacing the complete driveshaft.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

97034925900
97034925900

The product you are viewing cross references to these numbers
98733295500/1
Product Information
Product Information

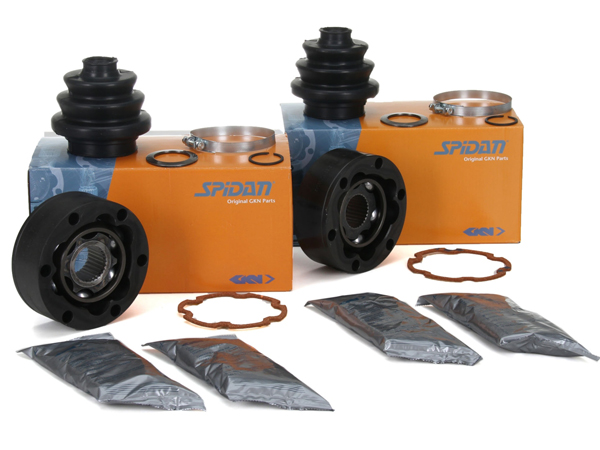

CV joint kit Constant Velocity Joint
High-quality GKN CV joint boot kit for selected Porsche Boxster and Cayman models, designed as a replacement for Porsche OE reference 98733295500.

Fits:
Porsche 986 Boxster 2.5L / 2.7L 1999 - 2004
Porsche 987 Boxster 2.7L 2005 - 2008
Porsche 987C Cayman 2.7L 2006 - 2008 5-Speed manual transmission
Porsche 987.2 Boxster 2.9L 2009 - 2012
Porsche 987C.2 Cayman 2.9L 2009 - 2012
Porsche 981 Boxster 2.7L 2012 - 2016
Porsche 981C Cayman 2.7L 2012 - 2016

Diagram ref no 16

Inner Diameter 1: 33 mm
Inner Diameter 2: 100 mm
Height: 102 mm
Bore Ø: 11 mm
Number of bores: 6 Bolt
Hole Circle Ø: 86 mm
Bellows Material: NBR (nitrile butadiene rubber)
New Part
Supplementary Article:  with cap, with grease


The GKNB11080 boot kit protects the constant-velocity joint within the driveshaft assembly, keeping the necessary lubricating grease inside the joint while preventing dirt, water and road contaminants from entering.

A correctly sealed CV joint is essential for smooth and reliable drivetrain operation. If the existing boot becomes cracked, split or damaged, grease can escape and contamination can enter the joint, potentially resulting in accelerated wear and eventual CV joint or driveshaft failure.

Manufactured from durable NBR nitrile rubber, this GKN boot is designed to withstand the movement, grease exposure and demanding operating environment found around the Porsche drivetrain.

Why Replace a Damaged CV Boot?
The CV boot is flexible so that it can move with the driveshaft while maintaining a sealed environment around the CV joint. With age and mileage, the boot can deteriorate due to repeated flexing, heat and exposure to road conditions.

Common signs of a damaged CV boot include:
•  Cracks or splits in the rubber
•  Grease leaking from around the boot
•  Grease deposited on nearby suspension components
•  Loose or damaged retaining clamps
•  Contamination around the CV joint
•  Clicking or knocking from the drivetrain
•  Vibration during acceleration

Replacing the boot before the CV joint itself becomes damaged can avoid the additional cost of replacing the complete joint or driveshaft.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

98733295500
98733295500
98633225900

The product you are viewing cross references to these numbers
Special Order item
971407283A/1
Product Information
Product Information

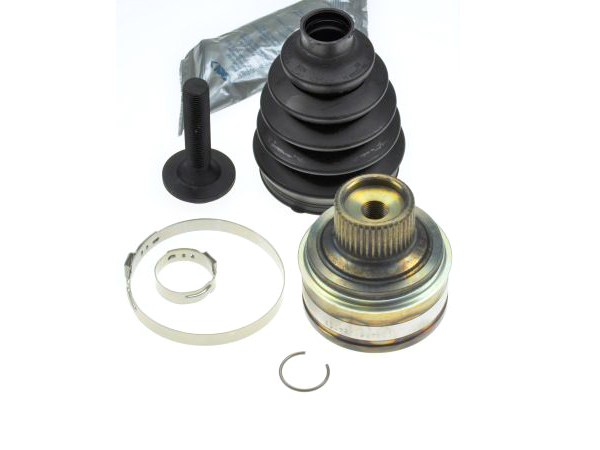

CV joint kit Constant Velocity Joint, Front axle, inner
Fitting Position: transmission sided, Front Axle Left, Front Axle Right

Fits:
Porsche 971.1 Panamera 2017 - 2021
Porsche 971.2 Panamera 2022 - 2023
 * option code: 1X1 - All-wheel drive
 * option code: 0J5 - Load group 2 FA/2 RA
 * option code: 0J8 - Load group 2 FA/1 RA

Porsche 976 Panamera 2024 >>
 * option code: 1X1 - All-wheel drive

Porsche 91J.1 Taycan Turbo S 2020 - 2023
Porsche 91J.2 Taycan Turbo S 2024>>

Diagram ref no 2

Inner Diameter 1: 25 mm
Inner Diameter 2: 68 mm
Height: 103 mm
Joint Type: Tripod Joint
Bellows Material: TPE (thermoplastic elastomer)
New Part
Supplementary Article: with grease


High-quality GKN CV joint boot kit GKNB20647 for selected Porsche Panamera 971 / 976  & Taycan drivetrain applications.

The CV joint boot is an essential protective component of the driveshaft assembly. Its purpose is to retain the specialised CV joint grease while preventing water, dirt, road debris and other contaminants from entering the joint.

This GKN boot is manufactured from TPE - thermoplastic elastomer, a durable material particularly suited to modern high-performance drivetrains where CV joints can operate at elevated temperatures and under substantial torque loads.

Designed for a tripod-type CV joint, the GKNB20647 provides the precise fit required to maintain an effective seal around the joint and driveshaft.

A damaged or split CV boot should be replaced as soon as possible. Once the boot loses its seal, grease can escape and contamination can enter the joint, potentially causing accelerated CV joint wear and eventually requiring replacement of the complete joint or driveshaft.



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

971407283A
971407283A

The product you are viewing cross references to these numbers
PAB407271F/1
Product Information
Product Information
exchange
Reconditioned Drive shaft, Front.

Sold individually, 1 required per side where fitted, 2 required per vehicle if replacing both rear drive shafts.

Please note:
Reconditioned units are sold on an exchange basis, A surcharge of £75.00 will be held and then refunded when the old one is returned. The old unit must be returned to Design911 in a built state, not in component pieces.

Fits:
Porsche 9YA.1 Cayenne 4.0L V8 Turbo E-Hybrid 2018 - 2024
Porsche 9YA.2 Cayenne 4.0L V8 Turbo E-Hybrid 2023 >>

Diagram ref no 1

Length: 496 mm
Seal diam.: 77 mm
Wheel Side Joint Ø: 103 mm
Transmission-sided Joint Ø: 134 mm
Thread Size: M16x1.5
Bore Ø:13 mm
Number of bores: 6 Bolt
Hole Circle Ø: 113 mm
Dust Cover: with dust cover
Exchange Part
Supplementary Article:  2 with screw

High-quality GKN front drive shaft for selected Porsche Cayenne 9YA 4.0L V8 Turbo E-Hybrid models.

The GKN GKND13056 is a complete front driveshaft / CV axle assembly designed as a premium replacement for Porsche OE references PAB407271A, PAD407271C and PAB407271F.

Suitable for installation on either the left-hand or right-hand side of the front axle, this makes ordering straightforward when replacing a worn or damaged driveshaft.

Please note: This product is sold individually. One shaft is required per side. Order a quantity of two if replacing both front driveshafts.

GKN Automotive is a globally recognised drivetrain specialist and a leading manufacturer of constant-velocity joints and sideshaft systems. GKN driveshaft technology is designed to provide smooth and efficient torque transfer while accommodating steering movement and suspension travel.

This makes the GKND13056 an excellent OE-quality replacement option for the high-performance plug-in hybrid drivetrain used in the Porsche Cayenne.

Why Replace a Worn Drive Shaft?
The driveshaft and CV joints operate under considerable load and are subjected to constant movement as the vehicle accelerates, brakes and travels over changing road surfaces.

Over time, wear or damage can occur to the CV joints, shaft, boots or associated components.

Possible symptoms of a worn or damaged rear driveshaft include:
•  Clicking or knocking noises
•  Vibration during acceleration
•  Shuddering through the vehicle
•  Excessive driveline play
•  Noise when turning
•  Damaged or leaking CV boots
•  Grease loss around the CV joint
•  Mechanical noise under acceleration or regenerative load.

Replacing a worn assembly with a complete quality GKN driveshaft helps restore smooth and reliable torque transmission.


PLEASE NOTE:
  • The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
  • Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
  • Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
  • All surcharges and exchanges are subject to our terms and conditions.


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAB407271F
PAB407271A
PAD407271C
PAB407271F

The product you are viewing cross references to these numbers
PLEASE NOTE:
  • The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
  • Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
  • Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
  • All surcharges and exchanges are subject to our terms and conditions.
992501203G/1
Product Information
Product Information
exchange
Reconditioned Drive shaft, Rear.
Sold individually, 1 required per side where fitted, 2 required per vehicle if replacing both rear drive shafts.

Please note:
Reconditioned units are sold on an exchange basis, A surcharge of £75.00 will be held and then refunded when the old one is returned. The old unit must be returned to Design911 in a built state, not in component pieces.

Fits:
Porsche 992 "911 Sport Classic" 3.8L 2020>>

Diagram ref no 1

Length: 584 mm
Seal diam.: 64 mm
Wheel Side Joint Ø: 97 mm
Transmission-sided Joint Ø: 112 mm
Thread Size: M22x1.5
Bore: Ø 10 mm
Number of bores: 6 Bolt
Hole Circle Ø: 96 mm
Exchange Part
Supplementary Article: with nut

High-quality GKN rear drive shaft for the Porsche 911 Type 992 Sport Classic, providing a premium replacement for Porsche OE reference 992501203G.

The GKN GKND13207 complete driveshaft assembly is designed for installation on the rear axle and is suitable for either the left-hand or right-hand side of the vehicle.

Please note: This product is sold individually. If replacing both rear drive shafts, order a quantity of two.

The driveshaft is a critical part of the Porsche drivetrain, transferring torque from the transmission and differential to the driven rear wheels while accommodating suspension movement and changes in driveshaft angle.

On a high-performance rear-wheel-drive model such as the 911 Sport Classic, the driveshaft and its constant-velocity joints must reliably transmit substantial torque while maintaining smooth, refined operation.

On a high-performance rear-wheel-drive model such as the 911 Sport Classic, the driveshaft and its constant-velocity joints must reliably transmit substantial torque while maintaining smooth, refined operation.

Why Replace a Worn Drive Shaft?
The driveshaft and CV joints operate under considerable load and are subjected to constant movement as the vehicle accelerates, brakes and travels over changing road surfaces.

Over time, wear or damage can occur to the CV joints, shaft, boots or associated components.

Possible symptoms of a worn or damaged rear driveshaft include:
•  Clicking or knocking noises
•  Vibration during acceleration
•  Shuddering through the vehicle
•  Excessive driveline play
•  Noise when turning
•  Damaged or leaking CV boots
•  Grease loss around the CV joint
•  Mechanical noise under acceleration or regenerative load.

Replacing a worn assembly with a complete quality GKN driveshaft helps restore smooth and reliable torque transmission.


PLEASE NOTE:
  • The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
  • Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
  • Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
  • All surcharges and exchanges are subject to our terms and conditions.


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

992501203G
992501203E
992501203K
992501203G

The product you are viewing cross references to these numbers
PLEASE NOTE:
  • The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
  • Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
  • Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
  • All surcharges and exchanges are subject to our terms and conditions.
PAD407271
Product Information
Product Information
exchange
Reconditioned Driveshaft, Front

Please note:
Reconditioned units are sold on an exchange basis, A surcharge of £75.00 will be held and then refunded when the old one is returned. The old unit must be returned to Design911 in a built state, not in component pieces.

Fits:
Porsche 91J.1 Taycan 30.06.2020>> 2024
Porsche 91J.2 Taycan 2024 >>
 * option code: E0A - No special edition
 * option code: A8H - Top sport equipment
 * option code: A8F - Sports equipment

Porsche 91J.1 Taycan 30.06.2020 >> 2024 Cross Turismo
 * option code: K8X - Cross Turismo
 * option code: A8C - Comfort equipment

Porsche 91J.2 Taycan 2024>>
 * option code: K8X - Cross Turismo
 * option code: K8S - Sports Sedan
 * option code: A8C - Comfort equipment

Diagram ref no 1

Length: 682 mm
ABS ring Ø: 64 mm
Seal diam.: 64 mm
Wheel Side Joint Ø: 78 mm
Transmission-sided Joint Ø: 75 mm
Thread Size: M22x1.5
Exchange Part
Supplementary Article: with nut

High-quality
GKN complete front drive shafts for the Porsche Taycan 9J1, providing a premium replacement solution for worn, damaged or noisy original driveshaft assemblies.

GKN Automotive is a major drivetrain technology specialist with extensive original-equipment expertise. Its sideshaft systems are engineered to transfer drive torque efficiently while maintaining the durability, refinement and low Noise, Vibration and Harshness (NVH) levels required by modern high-performance vehicles.

These complete driveshaft assemblies are designed for the Porsche Taycan front axle and incorporate the shaft and constant-velocity joint assemblies required to transfer torque from the front drive unit to the wheels while accommodating suspension and steering movement.

The
GKND13230 replaces the corresponding left-front Porsche OE PAD407271AA, while GKND13106 corresponds to the right-front Porsche OE PAD407271BA.

Why Replace a Worn Drive Shaft?
A worn driveshaft or CV joint can affect both drivetrain refinement and vehicle performance. Possible symptoms include:
•  Clicking or knocking noises
•  Vibration during acceleration
•  Shuddering through the vehicle
•  Excessive driveline play
•  Noise when turning
•  Damaged or leaking CV boots
•  Grease loss around the CV joint
•  Mechanical noise under acceleration or regenerative load.

Replacing a worn assembly with a complete quality GKN driveshaft helps restore smooth and reliable torque transmission.


PLEASE NOTE:
  • The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
  • Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
  • Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
  • All surcharges and exchanges are subject to our terms and conditions.


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAD407271
PAD407271G
PAD407271J
PAD407271N
PAD407271BA
PAD407271F
PAD407271H
PAD407271M
PAD407271AA

The product you are viewing cross references to these numbers
PLEASE NOTE:
  • The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
  • Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
  • Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
  • All surcharges and exchanges are subject to our terms and conditions.
95B521101Q/1
Product Information
Product Information

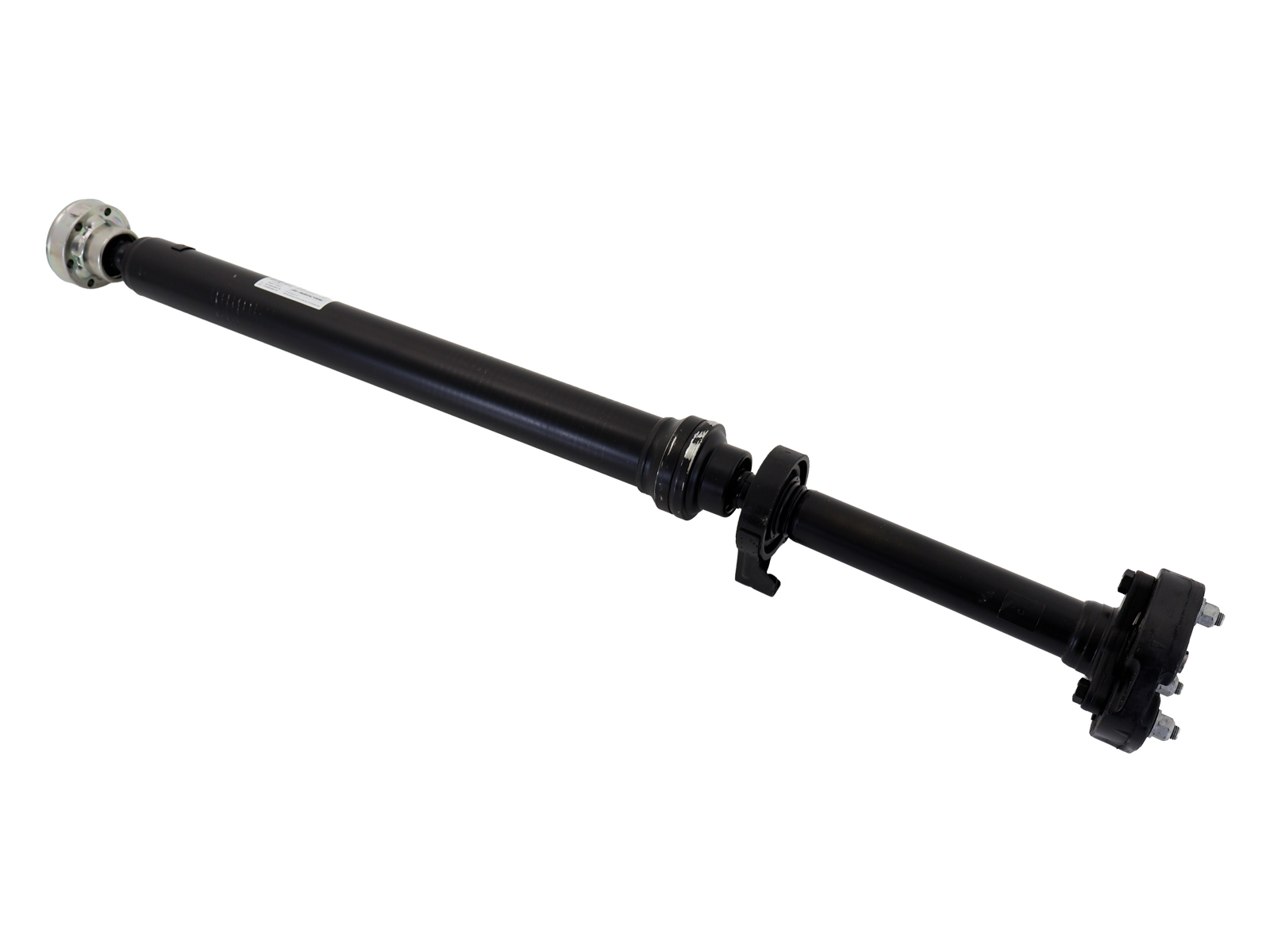

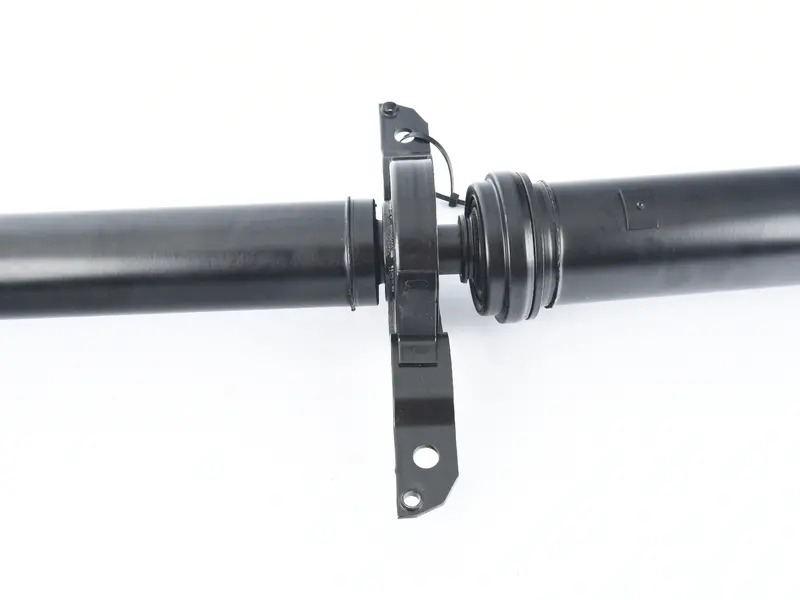

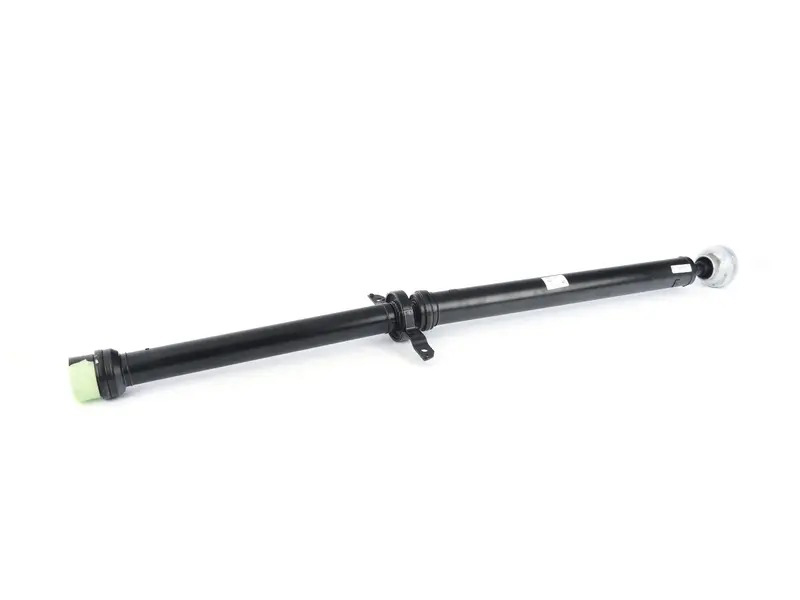

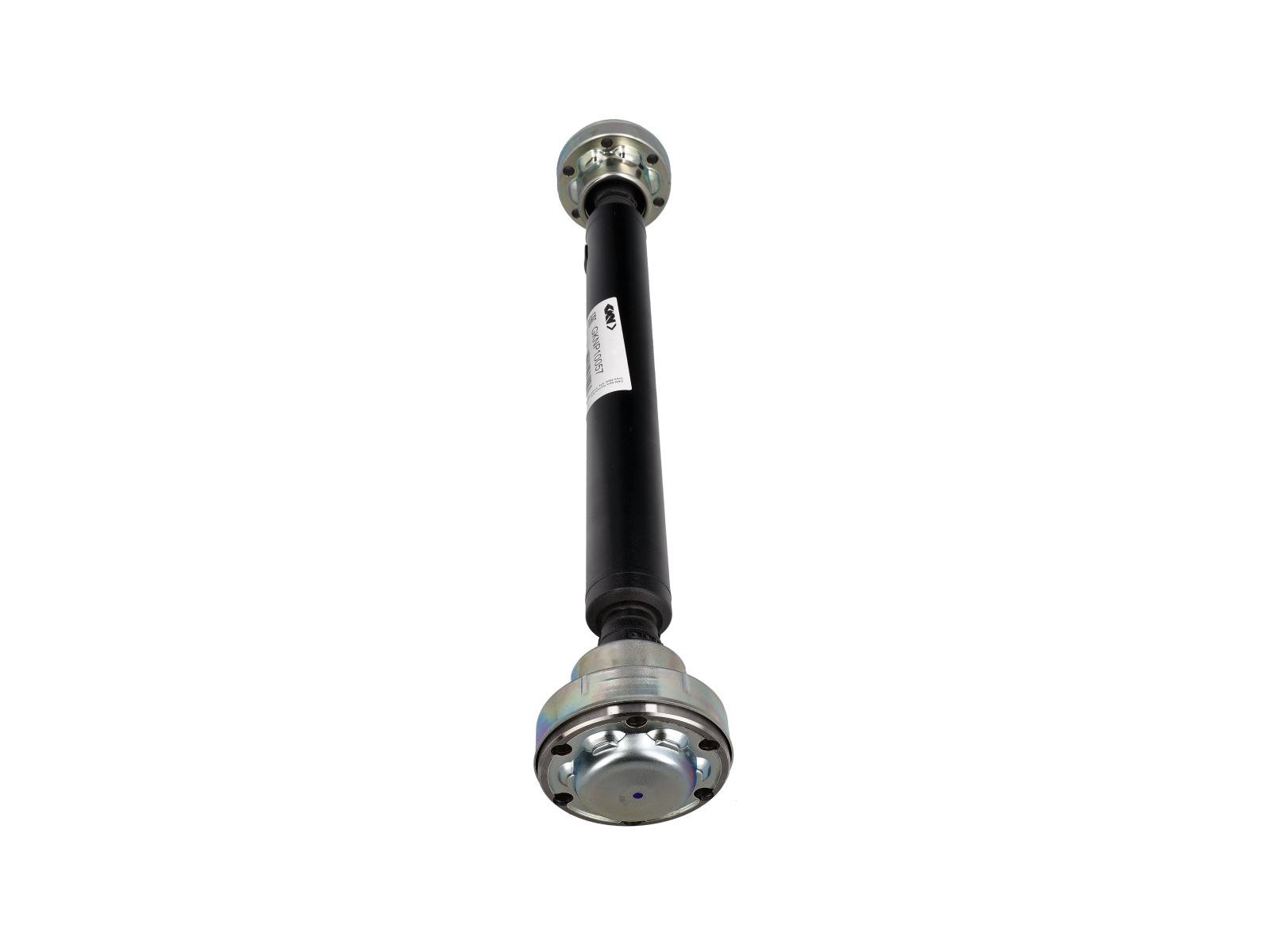

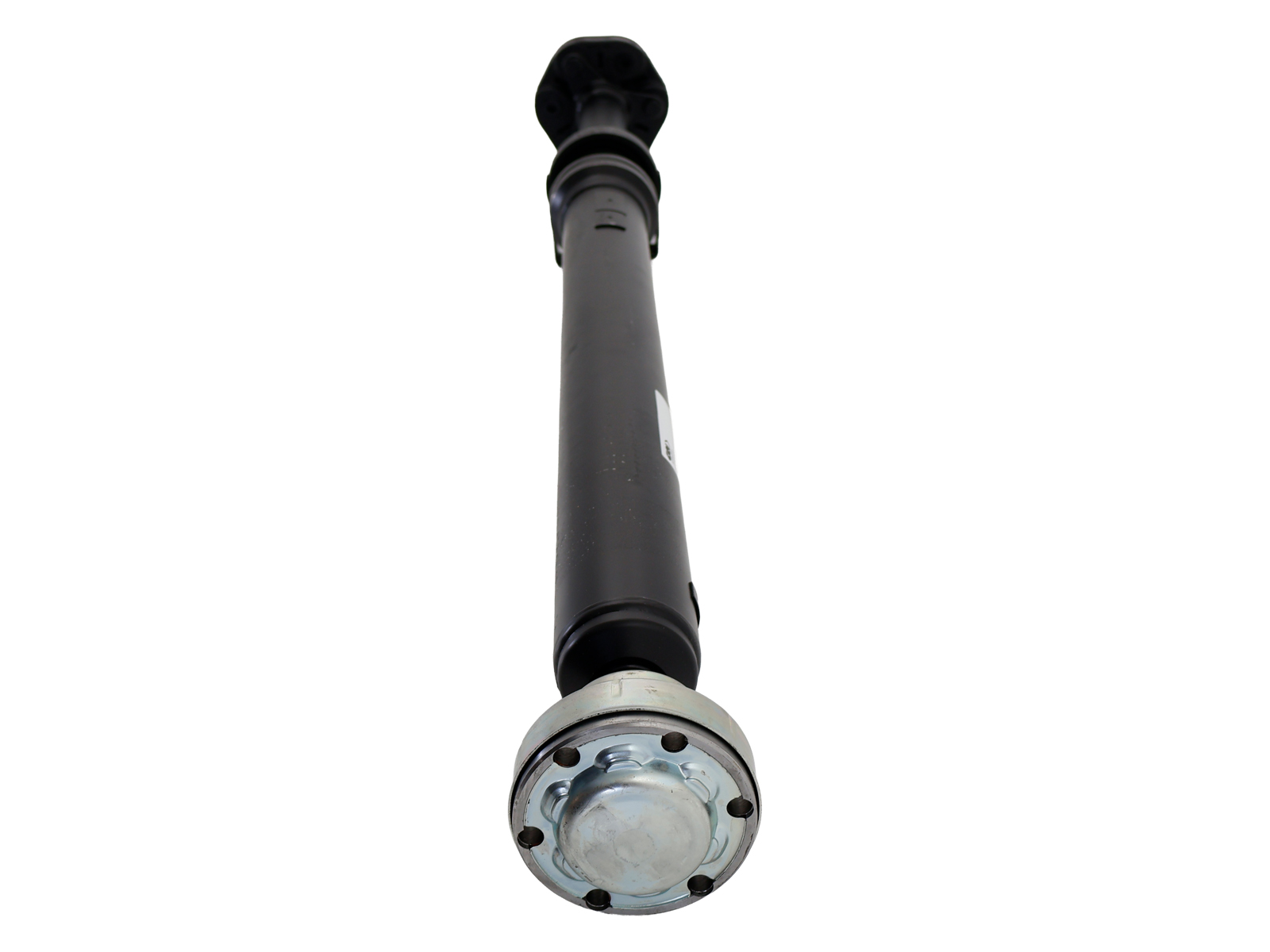

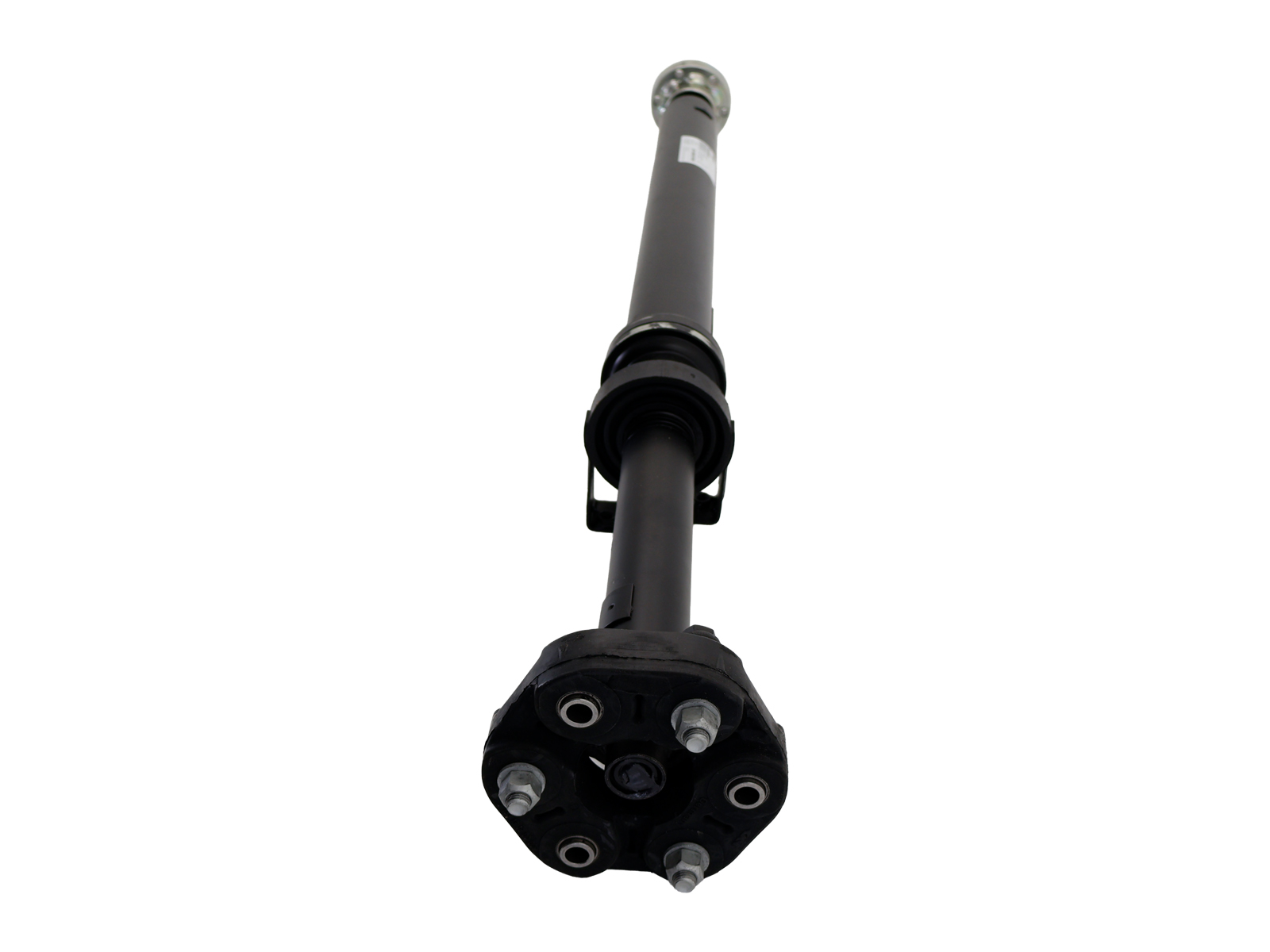

Cardan prop shaft.

Fits:
Porsche Macan (95B.1) 2.0L   07.06.2016>> 2018
* only to be used for:  M10

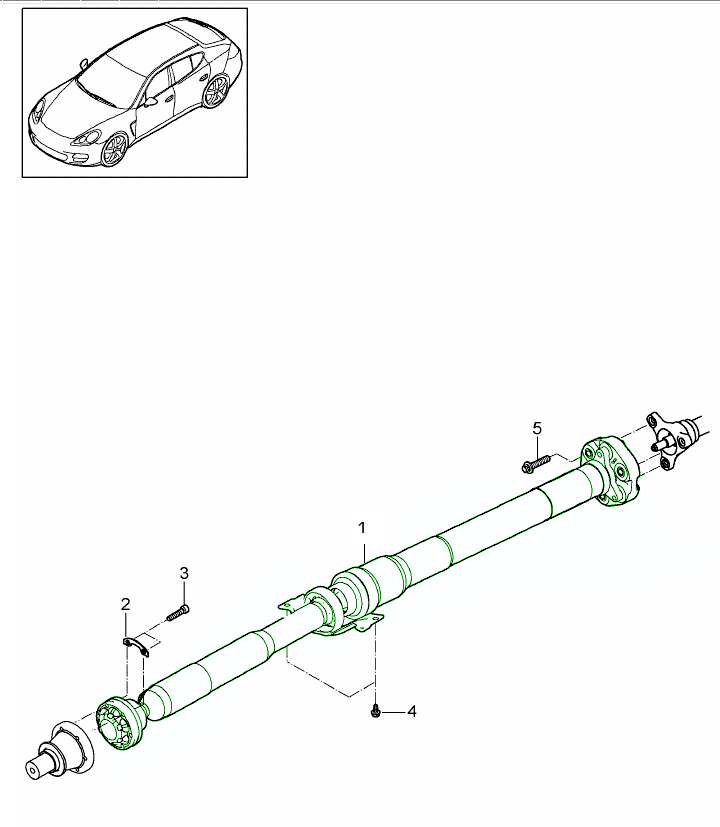

Diagram ref no 1


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95B521101Q
95B521101Q
95B521101J
95B521101E
95B521101T

The product you are viewing cross references to these numbers
99733229300/1
Product Information
Product Information
CV joint boot, Inner, Rear.

Fits:
For cars with PDK transmission
Porsche 997.2 Carrera 2009-12
Porsche 997.2 Turbo 2010-13
Porsche 991.1 Carrera 2012-16
Porsche 991 GT3 >>2017


Diagram ref no 13

Price is for each.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99733229300
99733229300

The product you are viewing cross references to these numbers
9GT501201G/1
Product Information
Product Information
exchange
Reconditioned Driveshaft, Rear
Fitting Position: Rear Axle Left, Rear Axle Right
Sold individually, 1 required per side where fitted, 2 required per vehicle if replacing both rear drive shafts.

Please note:
Reconditioned units are sold on an exchange basis, A surcharge of £75.00 will be held and then refunded when the old one is returned. The old unit must be returned to Design911 in a built state, not in component pieces.

Fits:
Porsche 911 (992) GT3 (992810, 992812)  05.2021-12.2025 Coupe
Porsche 911 (992) GT3 RS (992850)  09.2022-12.2025 Coupe
Porsche 911 (992) GT3 Touring (992820, 992822) 05.2021-12.2025 Coupe
Porsche 911 (992) S/T  (992880)   06.2023-12.2025 Coupe

Diagram ref no 1

Length: 541 mm
Seal diam.: 64 mm
Wheel Side Joint Ø: 105 mm
Transmission-sided Joint Ø: 116 mm
Thread Size: M22x1.5
Bore Ø: 11 mm
Number of bores: 6 Bolt
Hole Circle Ø: 100 mm
Exchange Part
Supplementary Article: with nut

High-quality
GKN rear driveshaft for the Porsche 911 Type 992 GT3, designed as a premium replacement for Porsche OE references 9GT501201A and 9GT501201G.

The
GKN GKND13208 complete driveshaft assembly transfers engine torque from the transmission and differential to the driven rear wheels while allowing for continuous suspension movement and changes in driveshaft angle.

Designed for installation on
either the left-hand or right-hand side of the rear axle, the same driveshaft can be used for both positions.

Porsche reference
9GT501201G supersedes the earlier 9GT501201A reference.

GKN Automotive is one of the world's leading specialists in constant-velocity joint and sideshaft technology. Its aftermarket drivetrain components benefit directly from the company's OE engineering expertise and are designed to provide dependable torque transmission, durability and excellent Noise, Vibration and Harshness performance.


Why Replace a Worn Drive Shaft?
The driveshaft and CV joints operate under considerable load and are subjected to constant movement as the vehicle accelerates, brakes and travels over changing road surfaces.

Over time, wear or damage can occur to the CV joints, shaft, boots or associated components.

Possible symptoms of a worn or damaged rear driveshaft include:
•  Clicking or knocking noises
•  Vibration during acceleration
•  Shuddering through the vehicle
•  Excessive driveline play
•  Noise when turning
•  Damaged or leaking CV boots
•  Grease loss around the CV joint
•  Mechanical noise under acceleration or regenerative load.

Replacing a worn assembly with a complete quality GKN driveshaft helps restore smooth and reliable torque transmission.


PLEASE NOTE:
  • The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
  • Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
  • Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
  • All surcharges and exchanges are subject to our terms and conditions.


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9GT501201G
9GT501201A
9GT501201G

The product you are viewing cross references to these numbers
PLEASE NOTE:
Due to its size, weight or fragility, this item requires additional protective packaging to make sure it reaches you undamaged. A small packing surcharge is applied to cover these specialist materials and the extra care taken preparing your order for transit.
99633229300/1
Product Information
Product Information

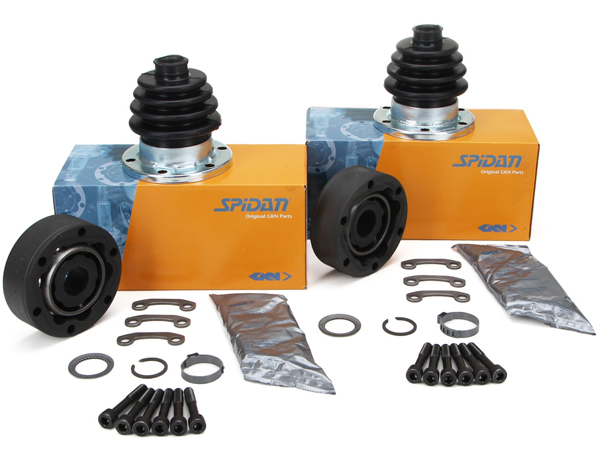

The CV joint (Constant Velocity Joint) rubber boot is located at each end of the axle assembly and protects the CV Joint. if the boot is split this can cause further damage.
The kit includes clips and grease.

Fits:
Porsche 986 BOXSTER 2.7L 2003-04 INNER AND OUTER
Porsche 987 BOXSTER 987C CAYMAN INNER AND OUTER
Porsche 996 2002>> C2/C4 REAR INNER AND OUTER
Porsche 997 C2/C4 REAR INNER AND OUTER

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99633229300
99633229300
996.332.293.00
37046

The product you are viewing cross references to these numbers
95533290100/1
Product Information
Product Information
The CV joint (Constant Velocity Joint) rubber boot is located at each end of the axle assembly and protects the CV Joint. if the boot is split this can cause further damage.



Fits:
Porsche 955 Cayenne 3.2L 2004-06 (OUTER & INNER) Rear Axle
Porsche 957 Cayenne 3.6L 2007-10 (OUTER & INNER) Rear Axle
Porsche 957 Cayenne 3.0L DIESEL 2007-10 (OUTER & INNER) Rear Axle
Porsche 957 Cayenne S 4.8L V8 2007-10 Tiptronic (OUTER & INNER) Rear Axle

Click 'Zoom in' for large parts diagram.
Diagram ref no 9

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95533290100
95533290100
24232
95533290100
1143305410
111671
7L0407321D
7L0498099
7L0498099A
7L0498099AX
7L0498099C
7L0498099CX

The product you are viewing cross references to these numbers
95542102004/1
Product Information
Product Information

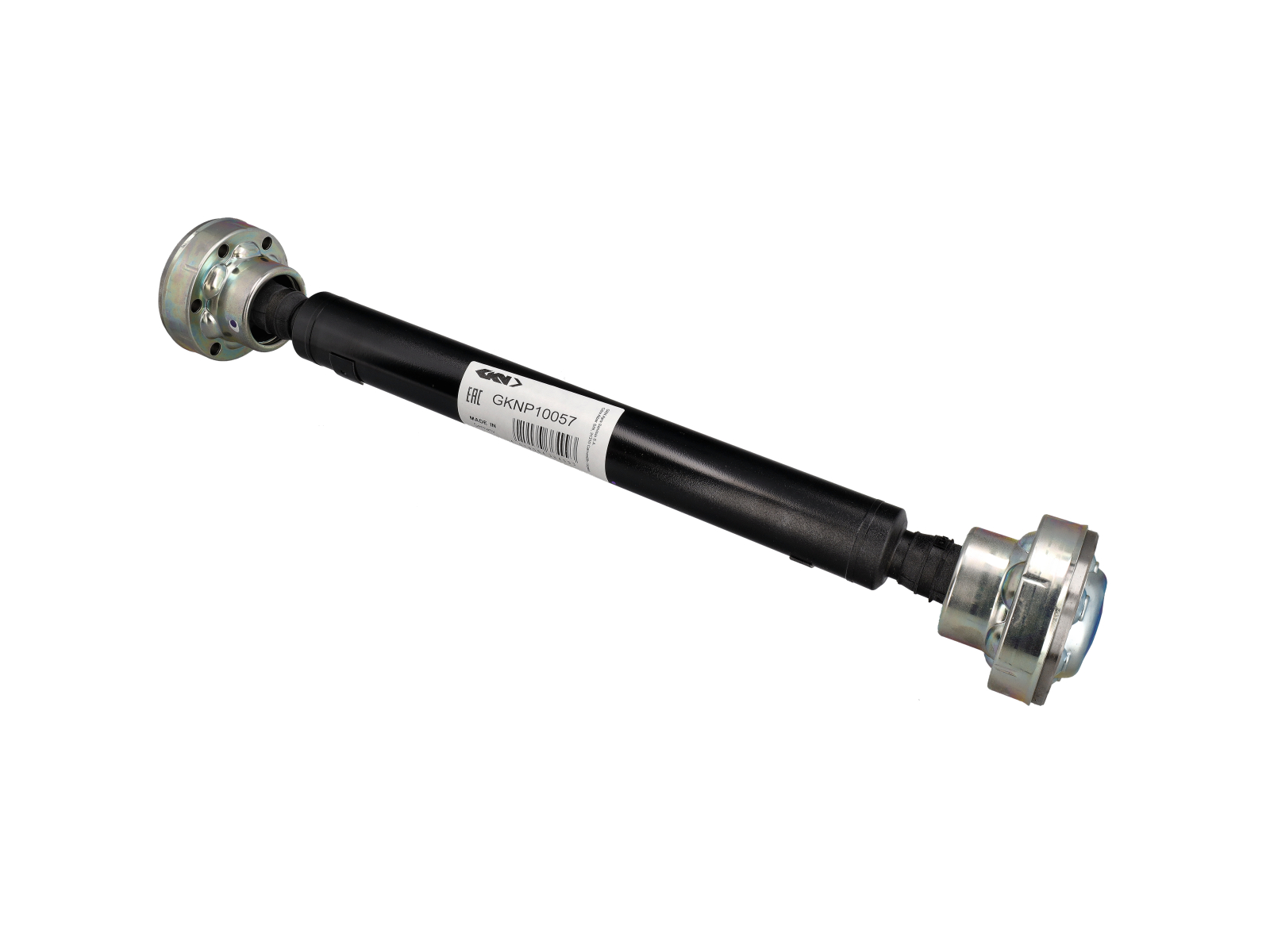

Cardan shaft front section transmission.



Fits:
Fits cars with petrol engine only
Porsche 955 Cayenne MKI 2003-06
Porsche 957 Cayenne MKII 2007>>

Previous part numbers:
- 95542102000
- 95542102001
- 95542102002
- 95542102003

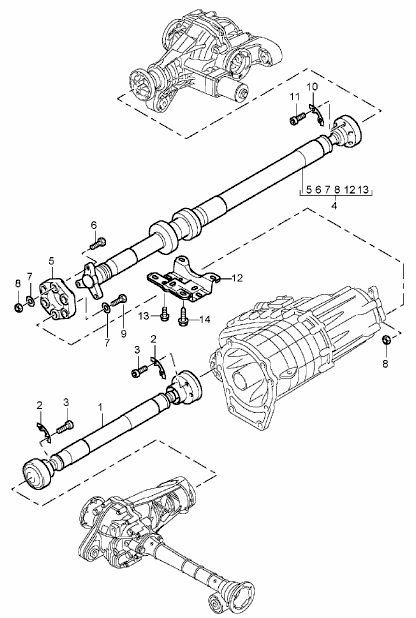

Click 'Zoom in' for large parts diagram.
Diagram parts Ref No 1.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95542102004
95542102000
95542102001
95542102002
95542102003
95542102004
95542102031
7L0521101
7L0521101A
7L0521101B
7L0521101D
7L0521101F
7L0521101G
7L0521101H
7L6521101D
7L6521101F
7L6521101H
7L6521101M
7L6521101P
7L6521101Q

The product you are viewing cross references to these numbers
95542102015/1
Product Information
Product Information
exchange
Reconditioned replacement cardan shaft rear transmission.

Please note:
Reconditioned units are sold on an exchange basis, A surcharge of £89.00 will be held and then refunded when the old one is returned.



Fits:
Porsche Cayenne 955 V6 3.2L MK I 2003-2006
Porsche Cayenne 955 V8 S 4.5L MK I 2003-2006
Porsche Cayenne 955 V8 4.5L Turbo MK I 2003-2006

Porsche Cayenne 957 6cyl 3.0L MK II 2007-2008
Porsche Cayenne 957 V8 3.6L MK II 2007-2008
Porsche Cayenne 957 V8 4.8L MK II 2007-2008
Porsche Cayenne 957 V8 4.8L GTS MK II 2007-2008
Porsche Cayenne 957 V8 4.8L Turbo MK II 2007-2008

Previous part numbers:
- 95542102010
- 95542102011
- 95542102012
- 95542102013
- 95542102014

Click 'Zoom in' for large parts diagram.
Diagram parts Ref No 4.


    PLEASE NOTE:
  • The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
  • Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
  • Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
  • All surcharges and exchanges are subject to our terms and conditions.




Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95542102015
20080
955.421.020.11
955.421.020.12
955.421.020.13
955.421.020.14
955.421.020.15
95542102011
95542102012
95542102013
95542102014
95542102015
7L0521102B
7L0521102D
7L0521102F
7L0521102G
7L0521102H
7L0521102M
7L0521102N
7L5521102C
7L6521102G
7L6521102J
7L6521102M
7L6521102P

The product you are viewing cross references to these numbers
PLEASE NOTE:
  • The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
  • Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
  • Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
  • All surcharges and exchanges are subject to our terms and conditions.
DISPLAYING 1 to 16 (of 42 products)
1 2 3
